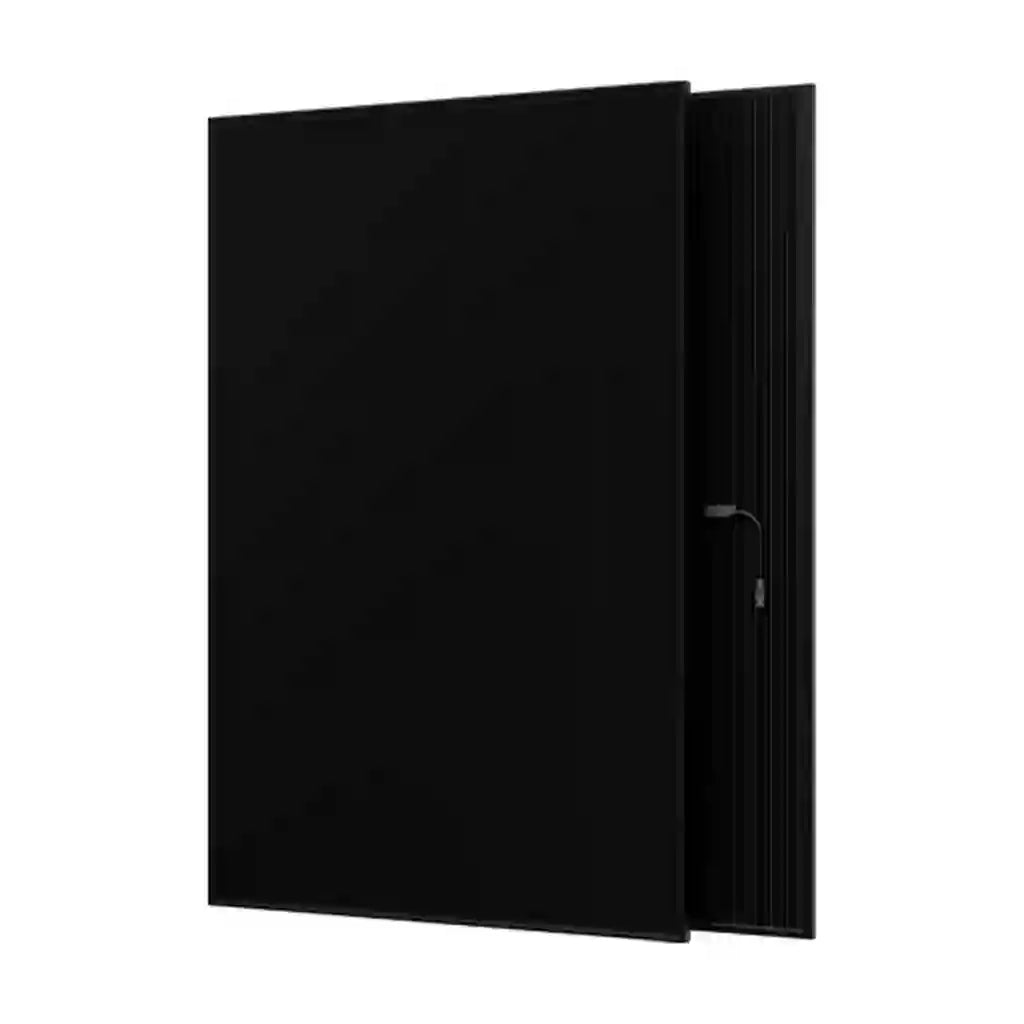

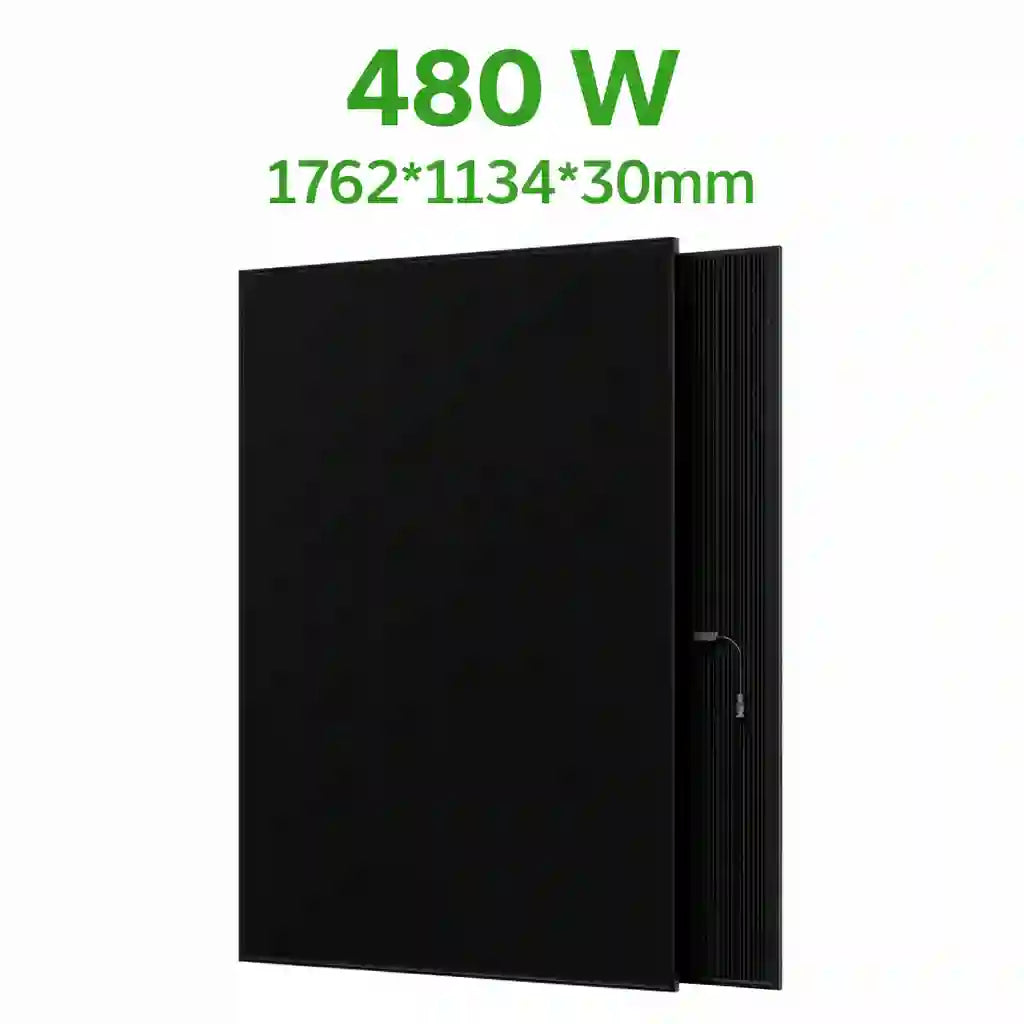

The AIKO Neostar 3S+ AIKO-A480-MCE54Db 480W N-Type ABC Dual Glass Half-Cell Solar Panel is engineered for high-performance solar installations, delivering exceptional efficiency, durability, and long-term reliability. Built with advanced N-type ABC half-cell technology and a robust dual-glass design, this module ensures excellent energy yield, improved temperature performance, and long-term stability.
Its durable construction, featuring 2.0 + 2.0 mm coated semi-tempered dual glass and a corrosion-resistant black anodised aluminium frame, provides superior mechanical strength and enhanced resistance to environmental stress. With low degradation rates, excellent resistance to micro-cracks, and strong low-light performance, this module is ideal for residential and commercial solar projects where efficiency and aesthetics matter.
| GENERAL DATA | |
| Brand | AIKO |
| Model | Neostar 3S+ |
| Cell Technology | N-Type ABC Half-Cell |
| Number of Cells | 108 (6×18) |
| Bifacial | No |
| ELECTRICAL DATA (STC) | |
| Rated Power | 480 W |
| Efficiency | 24.0 % |
| VMPP | 34.50 V |
| IMPP | 13.92 A |
| VOC | 40.90 V |
| ISC | 14.80 A |
| MECHANICAL DATA | |
| Dimensions | 1762 × 1134 × 30 mm |
| Weight | 24.2 kg |
| Glass | Dual glass, 2.0 + 2.0 mm coated semi-tempered |
| Connector | MC4-EVO2A |
| SYSTEM & PERFORMANCE | |
| Maximum System Voltage | 1500 V |
| Maximum Reverse Current (Fuse Rating) | 30 A |
| Operating Temperature | -40 °C to +85 °C |
| Maximum Static Load (Front / Rear) | 5400 Pa (front) / 2400 Pa (rear) |
| Temperature Coefficient (Pmax) | -0.26 %/°C |
| Safety Class | Class II |
| Fire Performance | IEC Class A |
| WARRANTY | |
| Warranty | 30-Year Product / 30-Year Linear Power |
