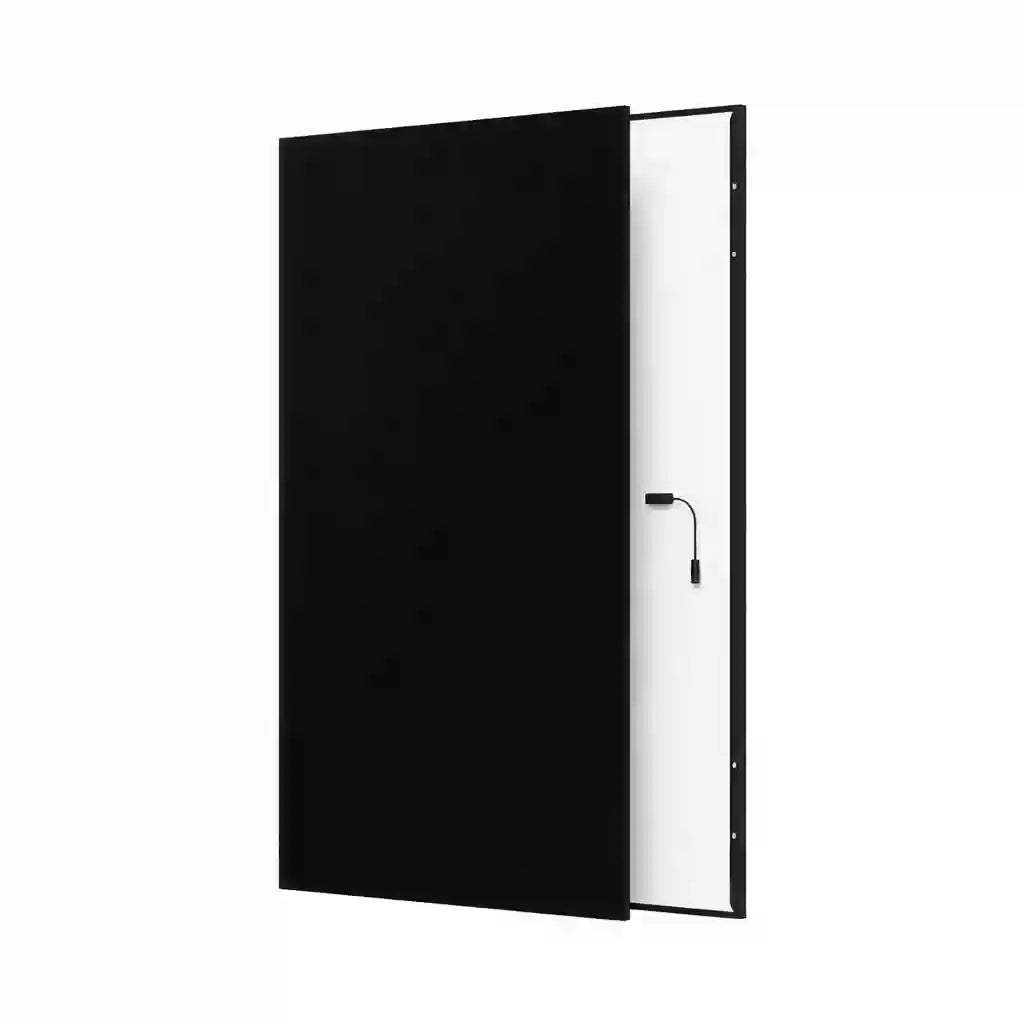

The AIKO Neostar 3S AIKO-A480-MCE54Mb 480W N-Type ABC Mono Glass Half-Cell Solar Panel is engineered for high-performance solar installations, delivering exceptional efficiency, durability, and long-term reliability. Built with advanced N-type ABC half-cell technology and a robust mono-glass design, this module ensures excellent energy yield, improved temperature performance, and long-term stability.
Its durable construction, including 3.2 mm tempered glass and a corrosion-resistant black anodised aluminium frame, provides superior mechanical strength and longevity. With industry-leading efficiency, low degradation rates, excellent resistance to micro-cracks, and strong low-light performance, this module is ideal for residential and commercial solar projects where efficiency and aesthetics matter.
Key Features
- 480W output power for high-efficiency energy generation
- Advanced N-type ABC half-cell technology for higher performance and reduced degradation
- High module efficiency up to 24.0%
- Mono-glass construction for durability and long service life
- Excellent temperature coefficient of -0.26 %/°C for stable performance
- Enhanced resistance to micro-cracks and shading losses
- Improved low-light performance for higher energy yield
- All-black design for premium residential installations
- 30-year product warranty and 30-year linear performance warranty
Specifications
| GENERAL DATA | |
| Brand | AIKO |
| Model | AIKO-A480-MCE54Mb (Neostar 3S54) |
| Cell Technology | N-Type ABC Half-Cell |
| Number of Cells | 108 (6×18) |
| Bifacial | No |
| ELECTRICAL DATA (STC) | |
| Rated Power (Pmax) | 480 W |
| Module Efficiency | 24.0 % |
| Vmp (Voltage at Max Power) | 34.50 V |
| Imp (Current at Max Power) | 13.92 A |
| Voc (Open Circuit Voltage) | 40.90 V |
| Isc (Short Circuit Current) | 14.80 A |
| Power Tolerance | 0 ~ +3% |
| MECHANICAL DATA | |

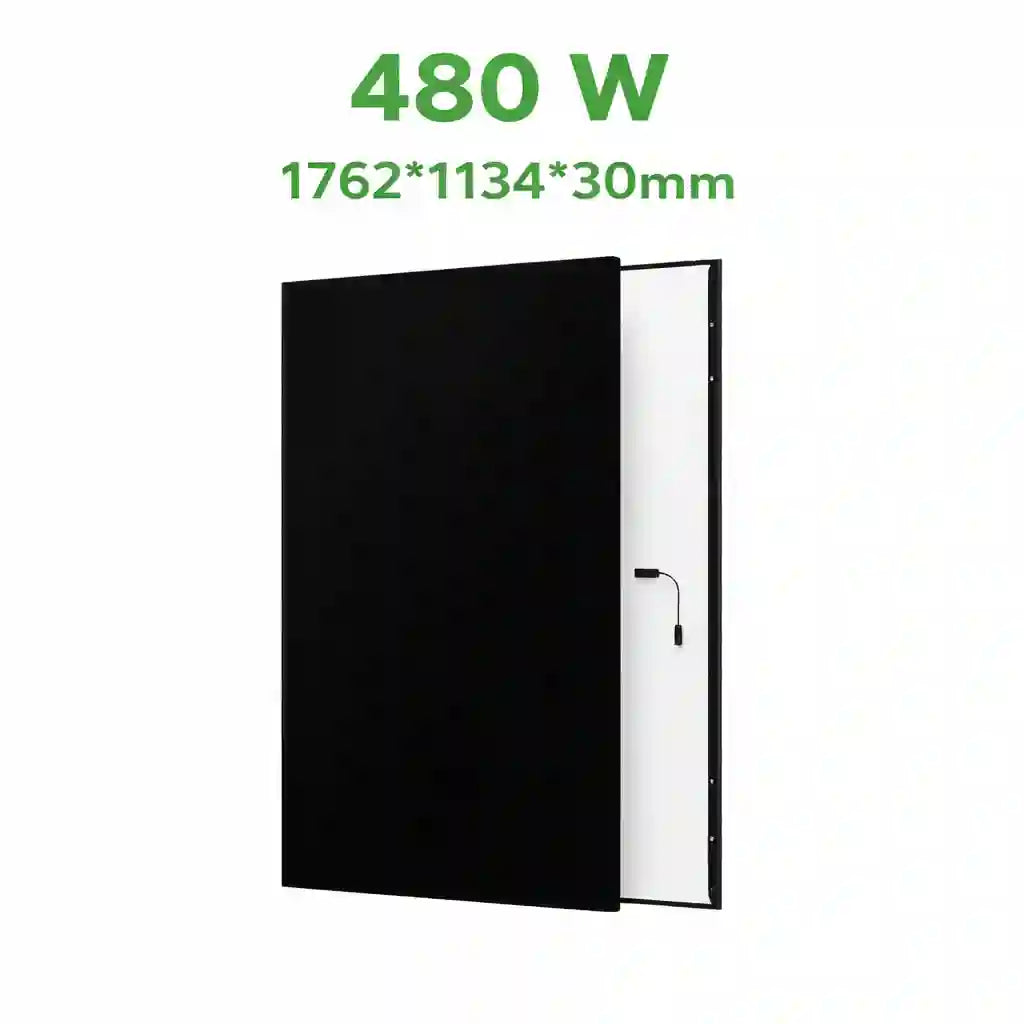

| Dimensions | 1762 × 1134 × 30 mm |
| Weight | 21.1 kg ±3% |
| Glass | 3.2 mm tempered glass |
| Frame | Black anodised aluminium |
| Backsheet | High weather-resistant backsheet |
| Connector | Original MC4-EVO2A |
| Junction Box | IP68, 3 bypass diodes |
| SYSTEM & PERFORMANCE | |
| Maximum System Voltage | DC1500V |
| Maximum Series Fuse Rating | 25 A |
| Operating Temperature | -40 °C to +85 °C |
| Maximum Static Load (Front / Rear) | 5400 Pa / 2400 Pa |
| Temperature Coefficient (Pmax) | -0.26 %/°C |
| Temperature Coefficient (Voc) | -0.22 %/°C |
| Temperature Coefficient (Isc) | +0.05 %/°C |
| Safety Class | Class II |
| Fire Rating | IEC Class C |
| WARRANTY | |
| Warranty | 30-Year Product Warranty / 30-Year Linear Performance Warranty |
Applications
- Residential rooftop installations
- Commercial and industrial systems
- All-black premium solar projects
- High-efficiency compact installations
