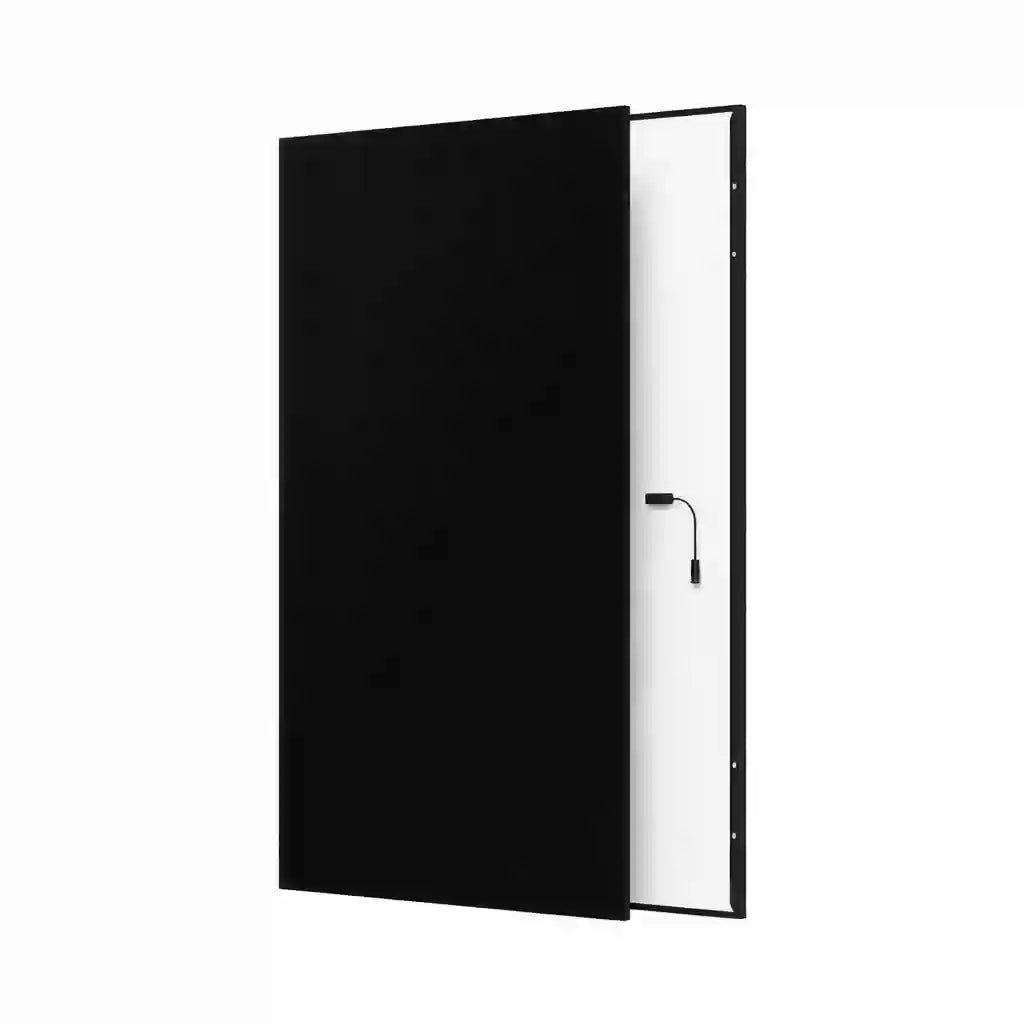

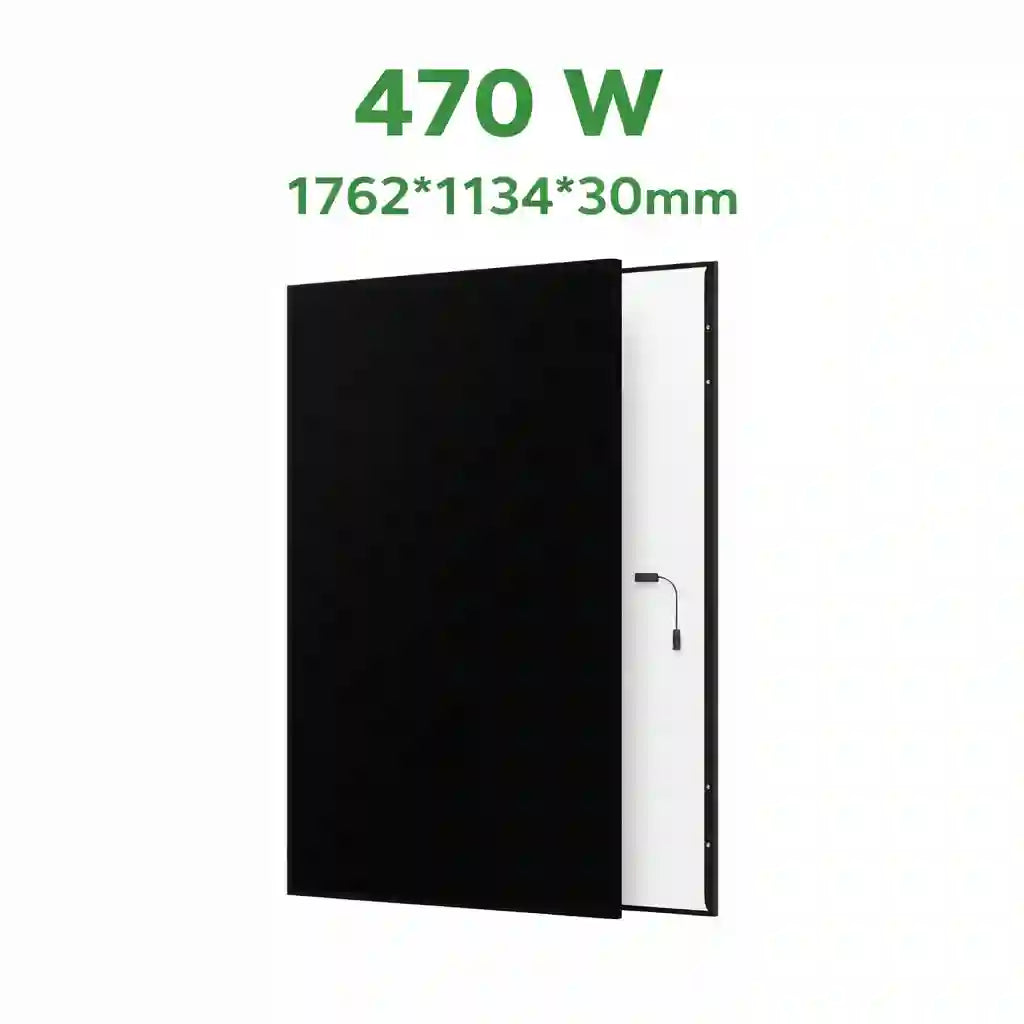

AIKO Neostar 3S 470W Mono ABC Solar Panel 23.5% 1762×1134×30mm 21kg

AIKO

The price below is made up of a net price of £92.27 and VAT of £18.45.
Price:
Sale price£110.72
£92.27 ex VAT
Description

The AIKO Neostar 3S AIKO-A470-MCE54Mb 470W N-Type ABC Mono Glass Half-Cell Solar Panel is engineered for high-performance solar installations, delivering exceptional efficiency, durability, and long-term reliability. Built with advanced N-type ABC half-cell technology and a robust mono-glass design, this module ensures excellent energy yield, improved temperature performance, and long-term stability.

Its durable construction, including 3.2 mm tempered glass and a corrosion-resistant black anodised aluminium frame, provides superior mechanical strength and longevity. With low degradation rates, excellent resistance to micro-cracks, and strong low-light performance, this module is ideal for residential and commercial solar projects where efficiency and aesthetics matter.

Key Features

  • Up to 470W output power for high-efficiency energy generation
  • Advanced N-type ABC half-cell technology for higher performance and reduced degradation
  • Mono-glass construction for durability and long service life
  • Excellent temperature coefficient of -0.26 %/°C for stable performance
  • Enhanced resistance to micro-cracks and shading losses
  • Improved low-light performance for higher energy yield
  • All-black design for premium residential installations
  • 25-year product warranty and 30-year linear performance warranty

Specifications

GENERAL DATA
Brand AIKO
Model Neostar 3S
Cell Technology N-Type ABC Half-Cell
Number of Cells 108 (6×18)
Bifacial No
ELECTRICAL DATA (STC)
Rated Power 470 W
Efficiency 23.5 %
VMPP 34.30 V
IMPP 13.71 A
VOC 40.70 V
ISC 14.72 A
MECHANICAL DATA
Dimensions 1762 × 1134 × 30 mm
Weight 21 kg
Glass Mono glass, 3.2 mm tempered glass
Connector MC4-EVO2A
SYSTEM & PERFORMANCE
Maximum System Voltage 1500 V
Maximum Reverse Current (Fuse Rating) 25 A
Operating Temperature -40 °C to +85 °C
Maximum Static Load (Front / Rear) 5400 Pa (front) / 2400 Pa (rear)
Temperature Coefficient (Pmax) -0.26 %/°C
Safety Class Class II
Fire Performance Class C
WARRANTY
Warranty 25-Year Product / 30-Year Linear Power

Applications

  • Residential rooftop installations
  • Commercial and industrial systems
  • All-black premium solar projects
  • High-efficiency compact installations
