⚠️ IMPORTANT – AIKO-01C CONNECTORS / MC4 COMPATIBILITY WARNINGThis solar panel is supplied with AIKO-01C connectors, NOT standard MC4 or MC4-EVO2A connectors. Please note: The official AIKO datasheet incorrectly specifies the connector type as "MC4 Compatible/MC4-EVO2A". This information is not correct for this solar panel, which is supplied with AIKO-01C connectors. AIKO-01C connectors should not be connected directly to standard MC4 or MC4-EVO2A connectors. If your existing solar equipment uses standard MC4 connectors, you will need a suitable AIKO-01C-to-MC4 adapter or extension cable. Adapter or extension cables are NOT included with this solar panel and must be purchased separately. Please check your existing equipment's connector type before purchasing. If you are unsure about compatibility, please contact us before placing your order. |

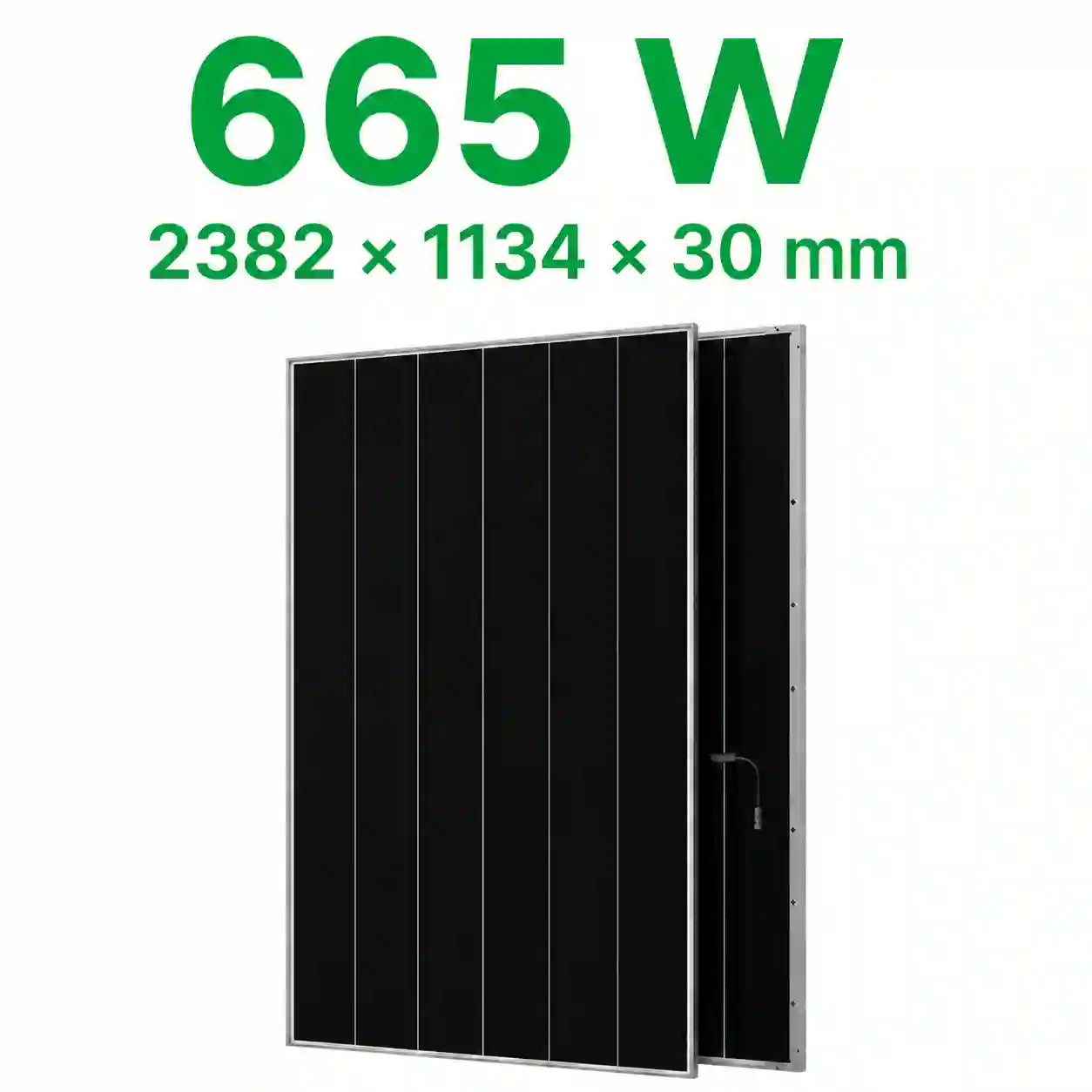

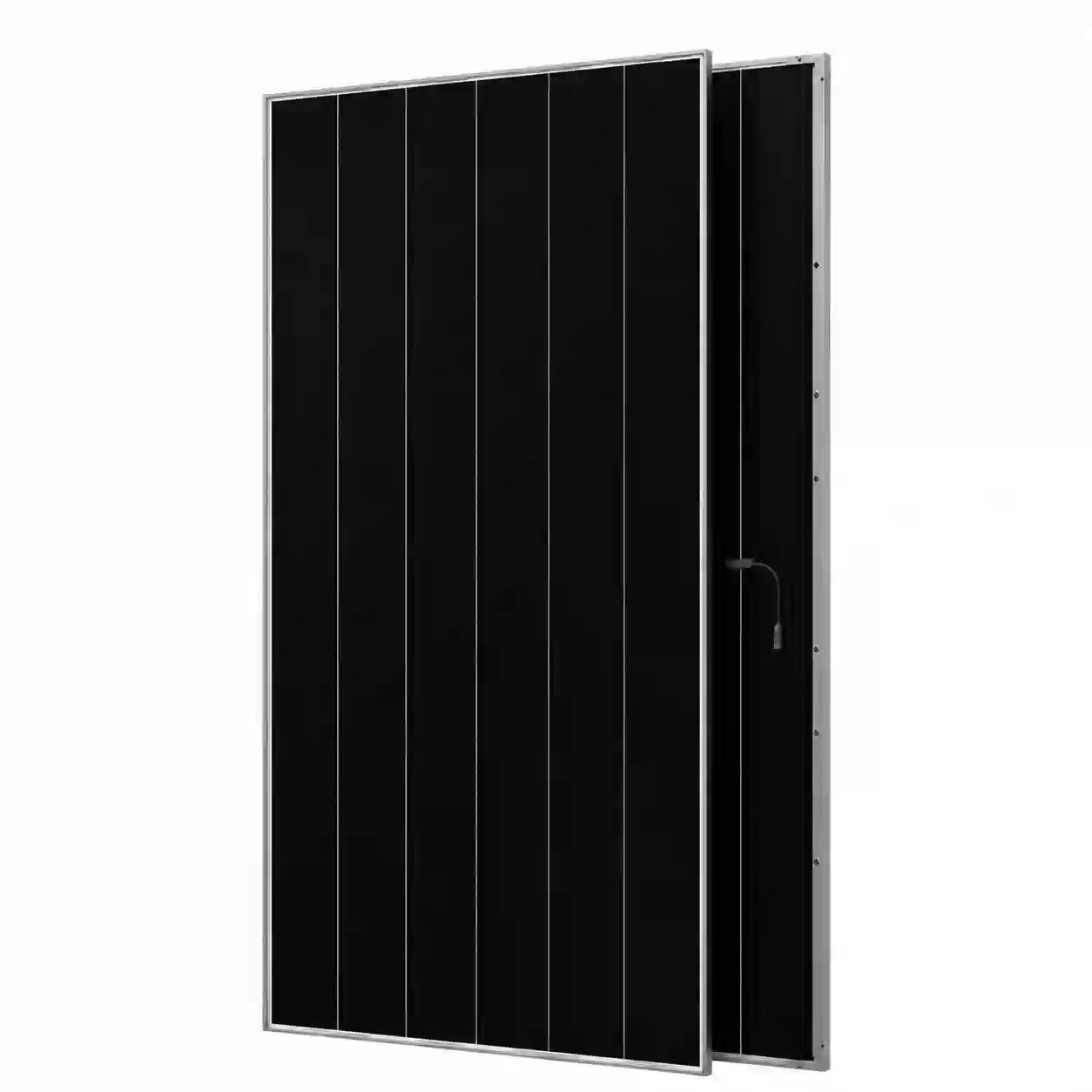

The AIKO Stellar 3N+72 AIKO-A665-MDE72Dw 665W N-Type ABC Double Glass Bifacial Solar Panel is a premium high-performance solar module engineered to deliver exceptional power output, industry-leading efficiency, and outstanding long-term reliability.
Built with AIKO's advanced N-Type ABC (All Back Contact) cell technology, this module eliminates front-side busbars to maximise light absorption, delivering higher energy yields, improved aesthetics, and lower long-term degradation.
Its robust dual-glass bifacial construction features two 2.0 mm coated semi-tempered glass layers that provide excellent resistance to harsh environmental conditions, enhanced mechanical strength, and increased service life.
With an impressive 24.6% module efficiency, excellent temperature characteristics, and bifacial technology capable of generating additional energy from reflected light, the AIKO Stellar 3N+72 is ideally suited for residential, commercial, industrial, and utility-scale solar installations.
Key Features
- 665W maximum output for exceptional energy production
- Advanced N-Type ABC (All Back Contact) cell technology for higher efficiency and improved aesthetics
- Bifacial double-glass construction captures additional energy from reflected light
- Outstanding module efficiency of 24.6%
- Excellent temperature coefficient of -0.26%/°C for improved performance in hot climates
- Less than 1% first-year degradation with only 0.35% annual linear degradation
- High mechanical load resistance of 5400 Pa (front) and 2400 Pa (rear)
- AIKO-01C connectors – not supplied with standard MC4 or MC4-EVO2A connectors
- MC4 connection requires a suitable AIKO-01C-to-MC4 adapter or extension cable (not included)
- 15-year product warranty and 30-year linear performance warranty
Specifications
| GENERAL DATA | |
| Brand | AIKO |
| Model | AIKO-A665-MDE72Dw |
| Series | Stellar 3N+72 |
| Cell Technology | N-Type ABC (All Back Contact) |
| Number of Cells | 144 (6 × 24 Half-Cells) |
| Bifacial | Yes |
| ELECTRICAL DATA (STC) | |
| Rated Power (Pmax) | 665 W |
| Efficiency | 24.6% |
| VMPP | 45.09 V |
| IMPP | 14.75 A |
| VOC | 55.20 V |
| ISC | 15.45 A |
| MECHANICAL DATA | |
| Dimensions | 2382 × 1134 × 30 mm |
| Weight | 32.2 kg ±3% |
| Glass | 2.0 mm + 2.0 mm coated semi-tempered double glass |
| Frame | Anodized Aluminium |
| CONNECTOR SPECIFICATIONS & COMPATIBILITY | |
| Actual Connector Type | AIKO-01C – NOT standard MC4 or MC4-EVO2A |
| Manufacturer Datasheet | The official AIKO datasheet states "MC4 Compatible/MC4-EVO2A". This information is incorrect for this solar panel, which is supplied with AIKO-01C connectors. |
| Direct MC4 Compatibility | AIKO-01C connectors should not be connected directly to standard MC4 or MC4-EVO2A connectors. |
| Required Adapter / Extension Cable | Suitable AIKO-01C-to-MC4 adapter or extension cable |
| Adapter Included | NO – Must be purchased separately |
| Installation Advice | Check connector compatibility before installation. Use a suitable AIKO-01C-to-MC4 adapter or extension cable when connecting to equipment fitted with standard MC4 connectors. |
| SYSTEM & PERFORMANCE | |
| Maximum System Voltage | 1500 V DC |
| Operating Temperature | -40°C to +70°C |
| Maximum Static Load (Front / Rear) | 5400 Pa / 2400 Pa |
| Temperature Coefficient (Pmax) | -0.26%/°C |
| Maximum Series Fuse Rating | 30 A |
| Protection Class | Class II |
| Fire Rating | IEC Class A |
| WARRANTY | |
| Warranty | 15-Year Product Warranty / 30-Year Linear Performance Warranty |
Applications
- Residential rooftop solar systems
- Commercial and industrial solar installations
- Ground-mounted photovoltaic systems
- Utility-scale solar farms
- Bifacial installations where reflected light can maximise energy yield
|
⚠️ PLEASE CHECK CONNECTOR COMPATIBILITY BEFORE ORDERING This AIKO Stellar 665W solar panel is supplied with AIKO-01C connectors, not standard MC4 or MC4-EVO2A connectors. Although the official AIKO datasheet states "MC4 Compatible/MC4-EVO2A", this information is incorrect for this solar panel. If your inverter, optimiser or existing solar installation uses standard MC4 connectors, you will need a suitable AIKO-01C-to-MC4 adapter or extension cable. Adapters and extension cables are not included. Please contact Worldwide Solar if you require further information before purchasing. |
