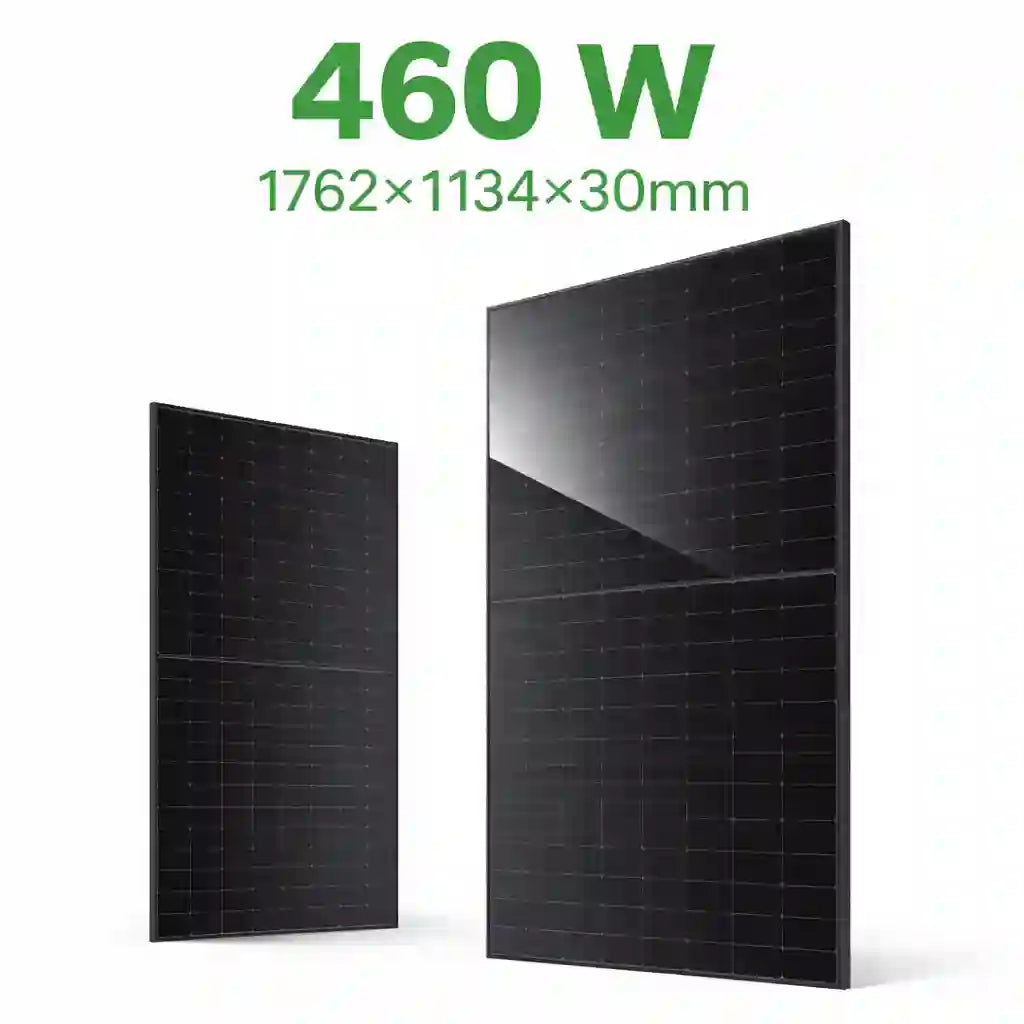

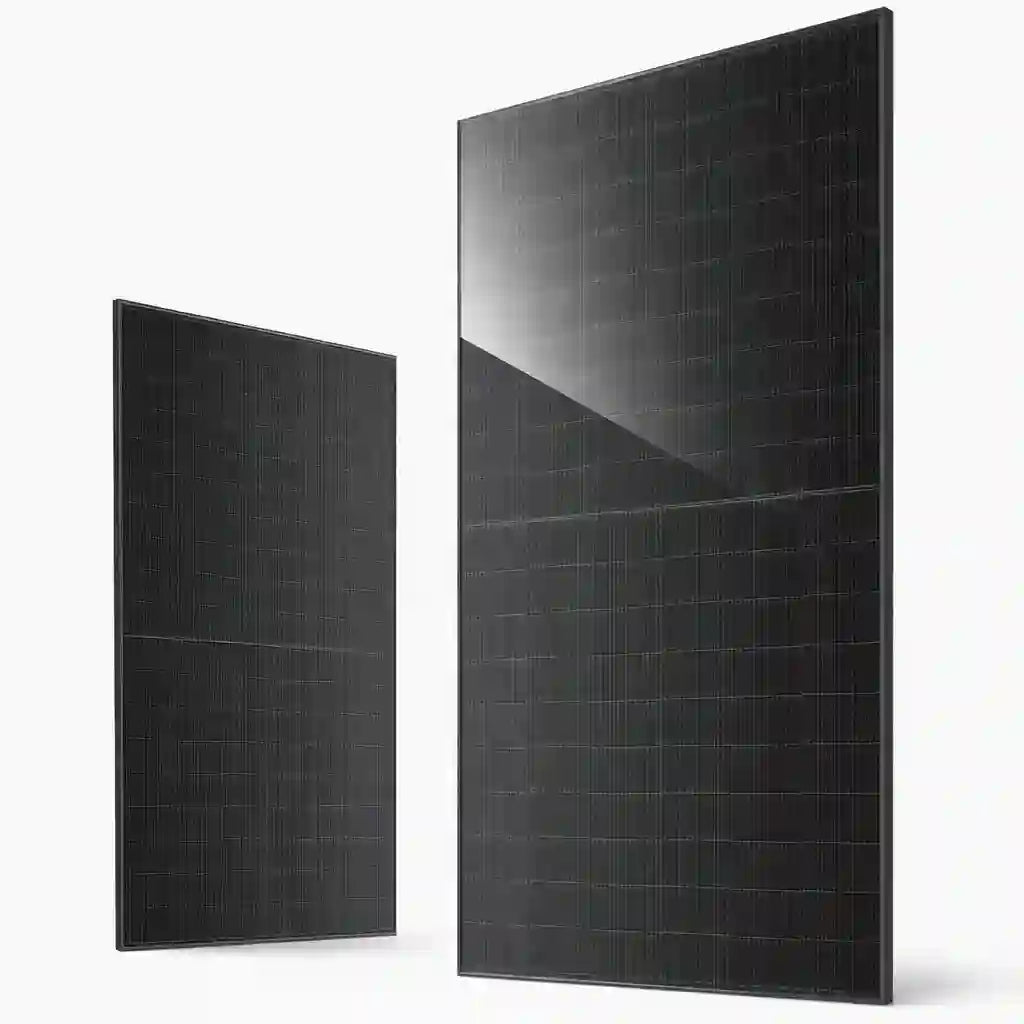

The JA Solar JAM54D41-460/LR DeepBlue 4.0 Pro 460W N-Type Double Glass Solar Panel is engineered for high-performance solar installations, delivering exceptional efficiency, durability, and long-term reliability. Built with advanced N-type half-cell technology and a robust double-glass design, this module ensures excellent energy yield, enhanced durability, and long-term stability.
Its compact and lightweight construction, featuring dual 1.6 mm glass layers and a corrosion-resistant black anodised aluminium frame, provides superior mechanical strength and ease of installation. With excellent temperature performance, reduced degradation, and high efficiency, this module is ideal for residential and commercial rooftop solar projects.
| GENERAL DATA | |
| Brand | JA Solar |
| Model | JAM54D41-460/LR |
| Series | DeepBlue 4.0 Pro |
| Cell Technology | N-type Half-Cell |
| Number of Cells | 108 (6×18) |
| Bifacial | No |
| ELECTRICAL DATA (STC) | |
| Rated Power (Pmax) | 460 W |
| Efficiency | 23.0 % |
| VMPP | 33.68 V |
| IMPP | 13.66 A |
| VOC | 40.60 V |
| ISC | 14.43 A |
| MECHANICAL DATA | |
| Dimensions | 1762 × 1134 × 30 mm |
| Weight | 22 kg |
| Glass | Double glass (1.6 mm / 1.6 mm) |
| Frame | Black anodised aluminium |
| Connector | QC 4.10-351 / MC4-EVO2A |
| SYSTEM & PERFORMANCE | |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse Rating | 30 A |
| Operating Temperature | -40 °C to +85 °C |
| Maximum Static Load (Front / Rear) | 5400 Pa / 2400 Pa |
| Temperature Coefficient (Pmax) | -0.29 %/°C |
| NOCT | 45 ± 2°C |
| Safety Class | Class II |
| Fire Performance | UL Type 29 / Class C |
| WARRANTY | |
| Warranty | 12-Year Product / 30-Year Linear Power |
