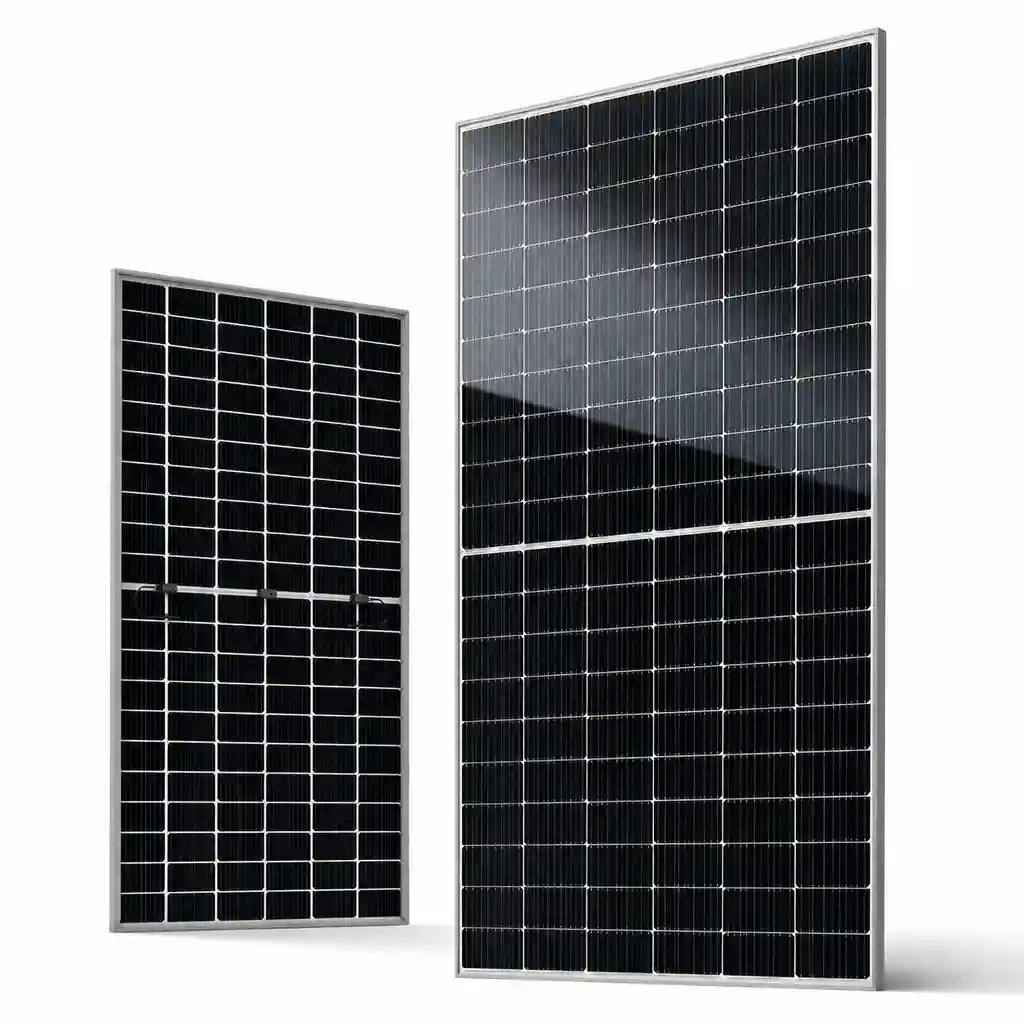

The JA Solar JAM60D42-540/LB DeepBlue 4.0 Pro 540W N-Type Bifacial Double Glass Solar Panel is a high-performance module designed for advanced solar installations, delivering outstanding efficiency, durability, and long-term reliability. Built with cutting-edge N-type half-cell technology and a robust bifacial double-glass design, this module maximises energy yield by capturing sunlight from both the front and rear surfaces, ensuring superior performance across a wide range of operating conditions.
Its durable construction, featuring dual 2.0 mm glass layers and a corrosion-resistant black anodised aluminium frame, provides exceptional mechanical strength and extended service life. With excellent temperature performance, reduced degradation, and high conversion efficiency, this module is ideal for residential, commercial, and utility-scale solar installations.
| GENERAL DATA | |
| Brand | JA Solar |
| Model | JAM60D42-540/LB |
| Series | DeepBlue 4.0 Pro |
| Cell Technology | N-type Half-Cell |
| Number of Cells | 120 (6×20) |
| Bifacial | Yes (80% ±10%) |
| ELECTRICAL DATA (STC) | |
| Rated Power (Pmax) | 540 W |
| Efficiency | 23.1 % |
| VMPP | 37.25 V |
| IMPP | 14.50 A |
| VOC | 44.33 V |
| ISC | 15.36 A |
| MECHANICAL DATA | |

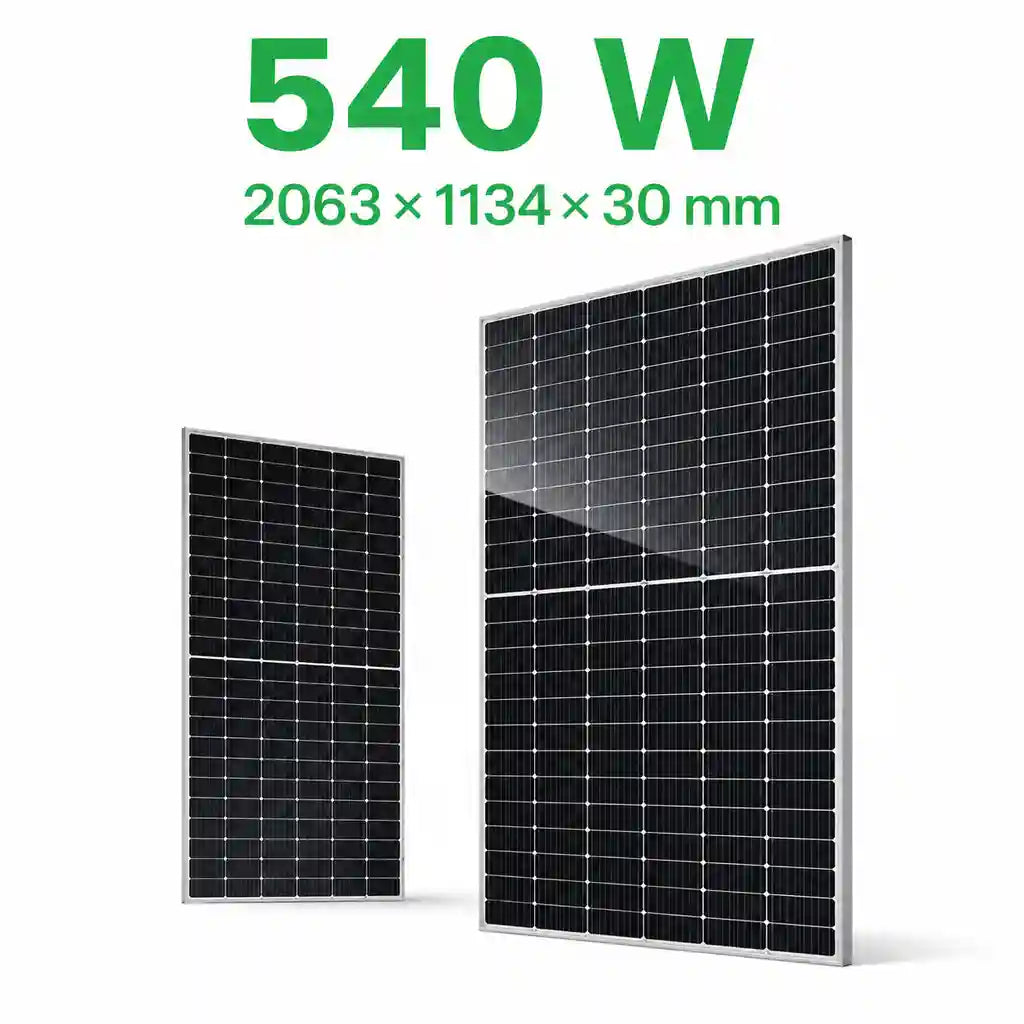

| Dimensions | 2063 × 1134 × 30 mm |
| Weight | 28.8 kg |
| Glass | Double glass (2.0 mm / 2.0 mm) |
| Frame | Black anodised aluminium |
| Connector | QC 4.10-351 / MC4-EVO2A |
| SYSTEM & PERFORMANCE | |
| Maximum System Voltage | 1500 V DC |
| Operating Temperature | -40 °C to +85 °C |
| Maximum Static Load (Front / Rear) | 5400 Pa / 2400 Pa |
| Temperature Coefficient (Pmax) | -0.29 %/°C |
| NOCT | 45 ± 2°C |
| Safety Class | Class II |
| Fire Performance | UL Type 29 / Class C |
| WARRANTY | |
| Warranty | 25-Year Product / 30-Year Linear Power |
