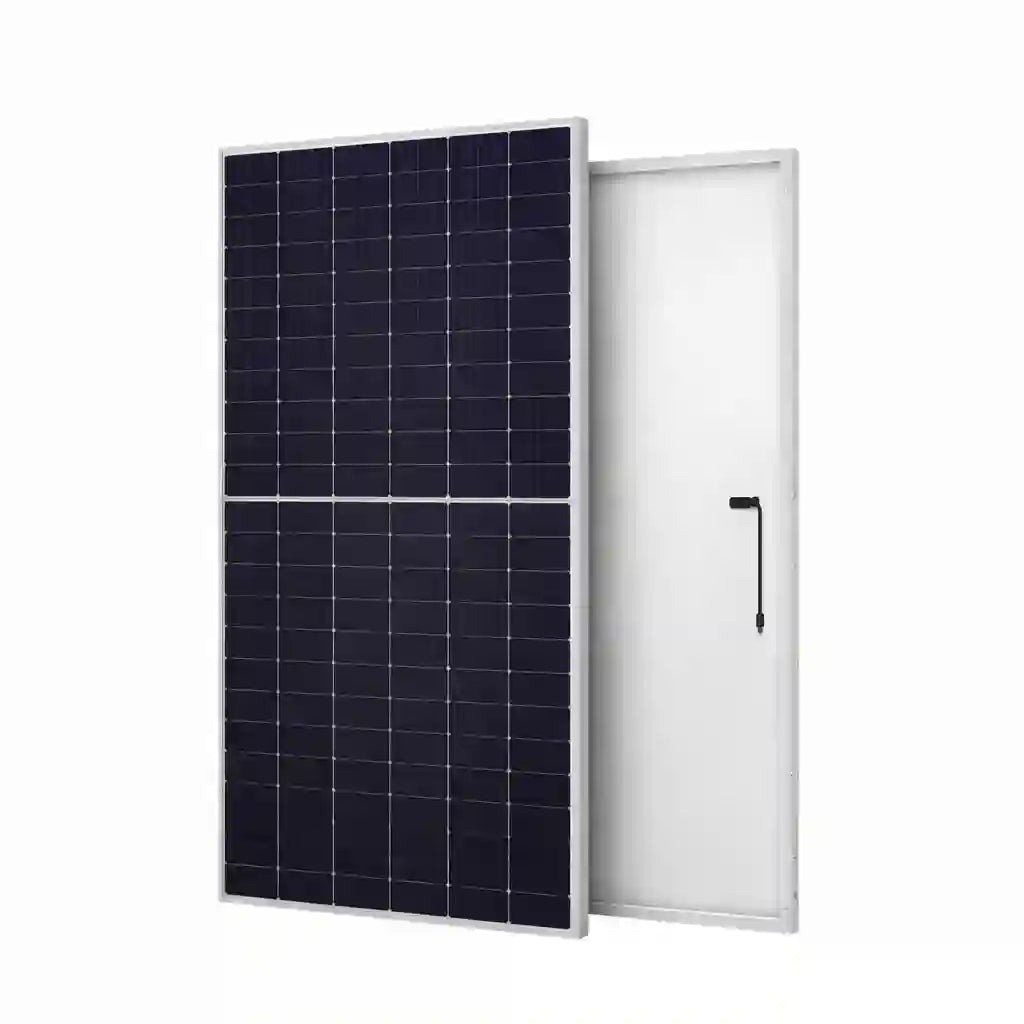

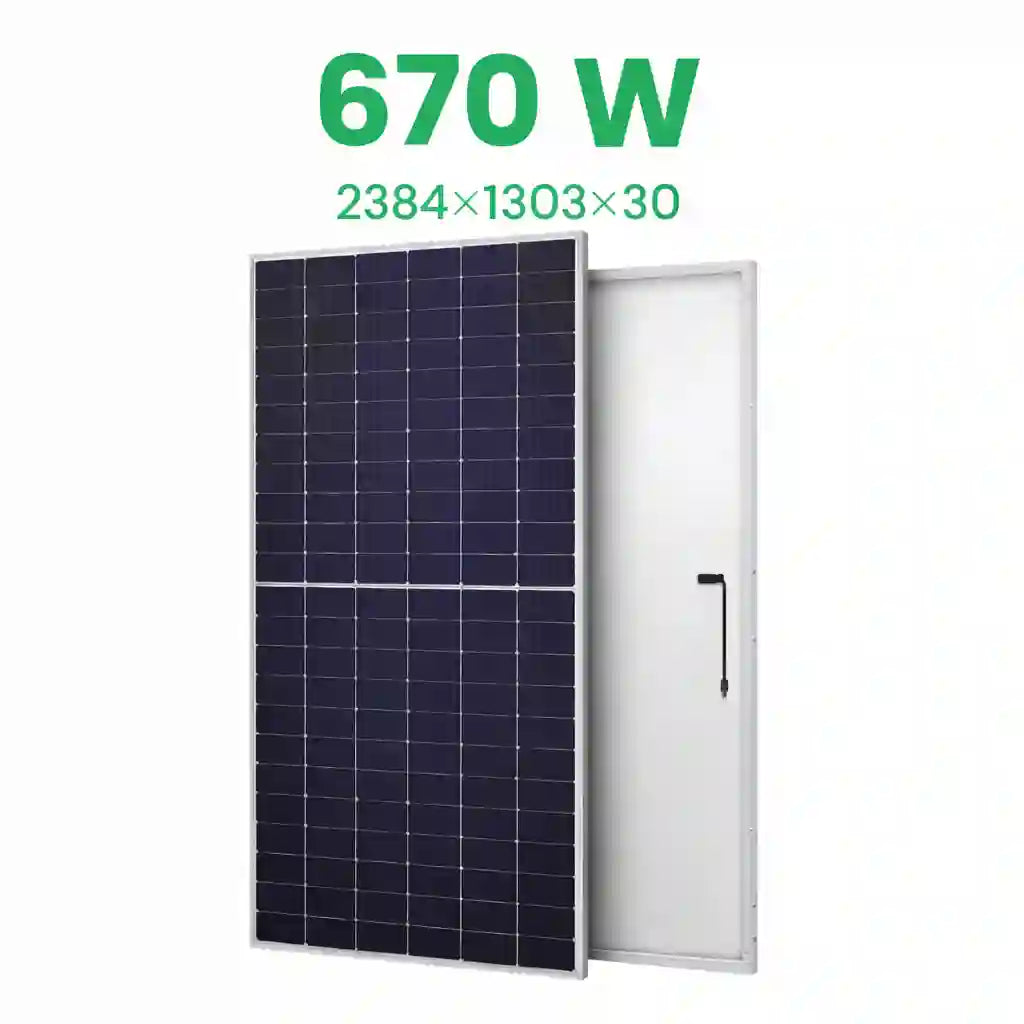

The OSDA ODA670-33V-MH 670W Mono PERC Half-Cell Solar Module is engineered for high-efficiency photovoltaic systems, delivering excellent power output, durability, and long-term reliability. Featuring advanced 210 mm mono PERC half-cell technology, this module reduces internal resistance and improves energy yield while minimising power loss.
With a robust aluminium frame, high-transmission tempered glass, and strong mechanical load resistance, the module is designed to perform reliably under demanding environmental conditions. Its excellent PID resistance and optimised electrical characteristics make it ideal for large-scale and commercial solar installations.
Key Features
- 670W output power for maximum energy generation
- Advanced half-cell technology for improved efficiency
- Excellent PID resistance for long-term stability
- Reduced power loss through optimised internal design
- High mechanical load capacity up to 5400 Pa
- Reliable performance in harsh environmental conditions
- IP68-rated junction box for superior protection
Specifications
| GENERAL DATA | |
| Brand | OSDA Solar |
| Model | ODA670-33V-MH |
| Cell Type | 210 × 105 mm Monocrystalline PERC |
| Number of Cells | 132 (12 × 11) |
| Bifacial | No |
| ELECTRICAL DATA (STC) | |
| Rated Power (Pmax) | 670 W |
| Maximum Power Voltage (Vmp) | 38.20 V |
| Maximum Power Current (Imp) | 17.54 A |
| Open Circuit Voltage (Voc) | 46.00 V |
| Short Circuit Current (Isc) | 18.62 A |
| Module Efficiency | 21.56 % |
| Power Tolerance | 0 ~ +3 % |
| MECHANICAL DATA | |
| Dimensions (L × W × H) | 2384 × 1303 × 30 mm |
| Weight | 33.9 kg |
| Front Glass | 3.2 mm tempered, low iron glass |
| Frame | Anodised aluminium alloy |
| Junction Box | IP68, 3 bypass diodes |
| Output Cable | 4 mm² cable, 35 cm (MC4 compatible) |
| SYSTEM & PERFORMANCE | |
| Maximum System Voltage | 1500 V |
| Maximum Reverse Current (Fuse Rating) | 30 A |
| Operating Temperature | -40 °C to +85 °C |
| Maximum Static Load (Front / Rear) | 5400 Pa / 2400 Pa |
| Pmax Temperature Coefficient | -0.340 %/°C |
| Voc Temperature Coefficient | -0.250 %/°C |
| Isc Temperature Coefficient | +0.040 %/°C |
| NOCT | 45 ± 2°C |
| Safety Class | Class II |
| WARRANTY | |
| Product Warranty | 12 Years |
| Performance Warranty | 25-Year Linear Power |
Applications
- Utility-scale solar power plants
- Commercial and industrial installations
- Ground-mounted solar systems
- Large-scale photovoltaic projects
Important Information for Installers
Please note: UK VAT rules apply to the sale of solar products.
Solar products can qualify for 0% VAT only when they are supplied and installed together as part of a complete installation by a VAT-registered installer.
As we supply products only and do not provide installation services, VAT must be charged on all orders.
If you are a VAT-registered installer, you may be able to reclaim this VAT from HMRC and calculate your costs based on the net price.
