| ✓ Compliant – ENA Approved Configuration This Plug & Play solar system is listed as a compliant configuration under WORLD/21651/V1/A1. |

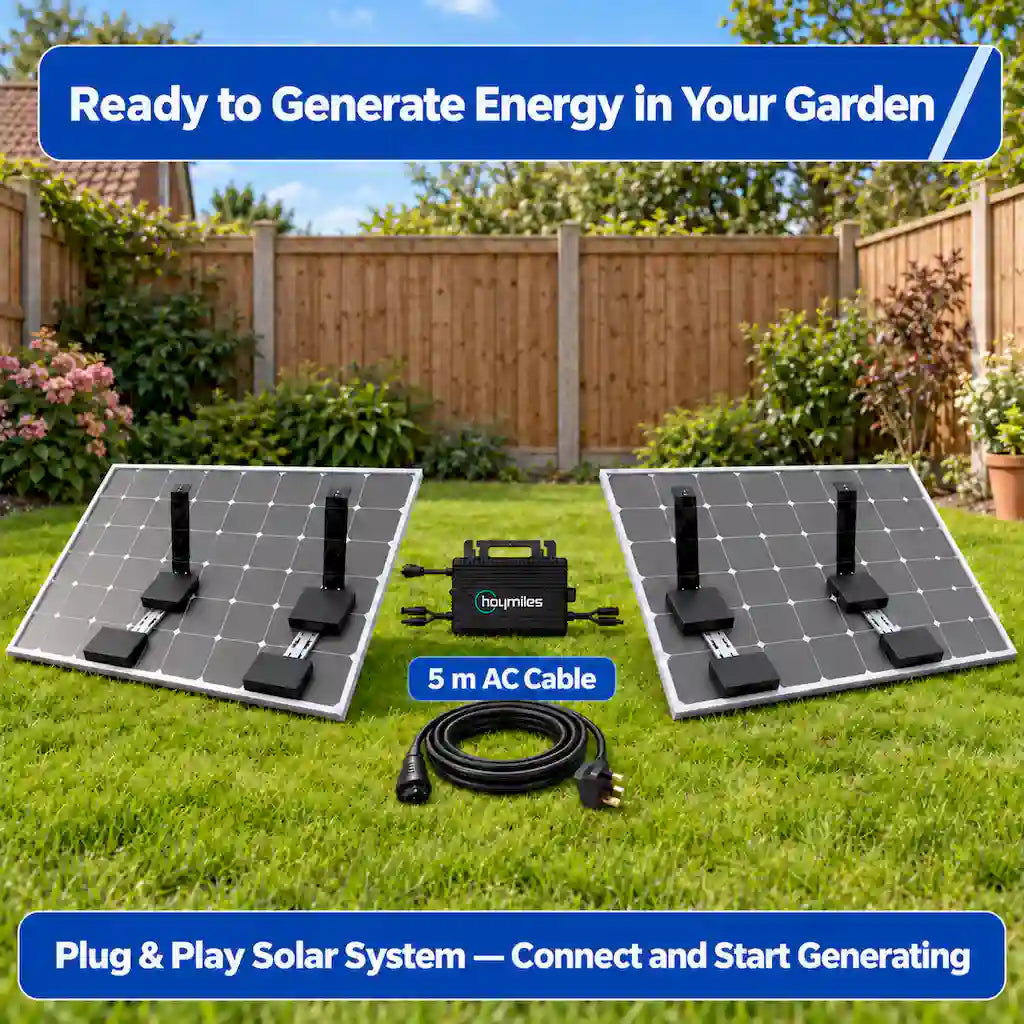

Generate your own renewable electricity with a complete 930W Plug & Play solar system. This kit combines two JA Solar JAM54D40-465/LB 465W N-type bifacial double-glass solar panels, a Hoymiles HMS-800-2WB HiFlow Pro Plug & Play microinverter, a 5m UK AC connection cable and two Worldwide Solar Model 2 – 20° ZAM steel ballast mounting systems.
The two solar panels provide a combined rated DC capacity of 930W, while the microinverter delivers a maximum of 800W AC. The microinverter automatically limits AC output to its rated maximum. Actual electricity generation depends on sunlight, temperature, panel orientation, shading and the amount of reflected light reaching the rear of the bifacial panels.
What's Included in This Solar Kit?
| KIT CONTENTS | |
| Solar Panels |
2 × JA Solar JAM54D40-465/LB DeepBlue 4.0 Pro 465W N-Type Bifacial Double Glass Solar Panels Total DC Capacity: 930W |
| Microinverter |
1 × Hoymiles HMS-800-2WB HiFlow Pro Plug & Play Microinverter Maximum AC Output: 800W |
| AC Connection Cable | 1 × 5m UK AC Connection Cable |
| Mounting Systems |
2 × Worldwide Solar Model 2 – 20° ZAM Steel Ballast Mounting Systems One mounting system per solar panel |
| Concrete Ballast | Not included – must be purchased separately |
| ENA Reference | WORLD/21651/V1/A1 |
Key Features and Benefits
- 930W installed panel capacity: Two high-efficiency 465W bifacial solar panels.
- 800W maximum AC output: Hoymiles HMS-800-2WB HiFlow Pro microinverter.
- Advanced N-type Bycium+ technology: Improved performance and reduced degradation.
- Bifacial double-glass construction: Potential additional electricity generation from reflected sunlight reaching the rear of the panels.
- 23.3% module efficiency: High power output from each solar panel.
- Independent panel optimisation: Two MPPT inputs independently optimise the connected panels.
- 20° mounting systems: Two ZAM-coated steel ballast mounting systems included.
- 5m UK AC connection: Supplied with a 5m UK AC cable.
- ENA-approved configuration: WORLD/21651/V1/A1.
JA Solar 465W N-Type Bifacial Double Glass Solar Panels
The JA Solar JAM54D40-465/LB DeepBlue 4.0 Pro 465W N-Type Bifacial Double Glass Solar Panel is engineered for high-performance solar installations, delivering excellent efficiency, durability and long-term reliability.
Built with advanced N-type Bycium+ half-cell technology and a bifacial double-glass design, this module generates electricity from sunlight reaching the front surface and can produce additional electricity from reflected light reaching the rear.
Its robust construction features dual 1.6mm glass layers and a corrosion-resistant black anodised aluminium frame, providing excellent mechanical strength and long service life.
With a rated output of 465W, module efficiency of 23.3% and a temperature coefficient of −0.29%/°C, these panels are designed to deliver reliable performance across a wide range of operating conditions.
Solar Panel Specifications
| GENERAL DATA | |
| Brand | JA Solar |
| Model | JAM54D40-465/LB |
| Series | DeepBlue 4.0 Pro |
| Cell Technology | N-type Bycium+ Half-Cell |
| Number of Cells | 108 (6 × 18) |
| Bifaciality | 80% ±5% |
| ELECTRICAL DATA (STC) | |
| Rated Power (Pmax) | 465W per panel (930W total DC) |
| Module Efficiency | 23.3% |
| VMPP | 33.50V |
| IMPP | 13.88A |
| VOC | 40.20V |
| ISC | 14.65A |
| MECHANICAL DATA | |
| Dimensions | 1762 × 1134 × 30 mm |
| Weight | 21.4 kg per panel |
| Glass | Double glass (1.6mm / 1.6mm) |
| Frame | Black anodised aluminium |
| Connector | QC 4.10-351 / MC4-EVO2A |
| SYSTEM & PERFORMANCE | |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 30A |
| Operating Temperature | −40°C to +85°C |
| Maximum Static Load (Front / Rear) | 5400 Pa / 2400 Pa |
| Temperature Coefficient (Pmax) | −0.29%/°C |
| NOCT | 45 ±2°C |
| Safety Class | Class II |
| Fire Performance | UL Type 29 / Class C |
| WARRANTY | |
| Panel Warranty | 12-Year Product / 30-Year Linear Power |
Hoymiles HMS-800-2WB HiFlow Pro Plug & Play Microinverter
The Hoymiles HMS-800-2WB HiFlow Pro converts the DC electricity generated by the solar panels into AC electricity for household use, delivering a maximum AC output of 800W.
Its two independent MPPT inputs allow the microinverter to optimise the connected solar panels separately, helping maintain efficient electricity generation when operating conditions differ between panels.
The supplied 5m UK AC connection cable provides the intended Plug & Play connection, subject to applicable electrical safety and network requirements.
Electrical compatibility: Each 465W panel has a rated operating current of 13.88A and a short-circuit current of 14.65A under standard test conditions. The microinverter's permitted DC input current, short-circuit current and voltage limits must be checked against these values, including the effects of bifacial gain and local temperatures.
Model 2 – 20° ZAM Steel Ballast Mounting Systems

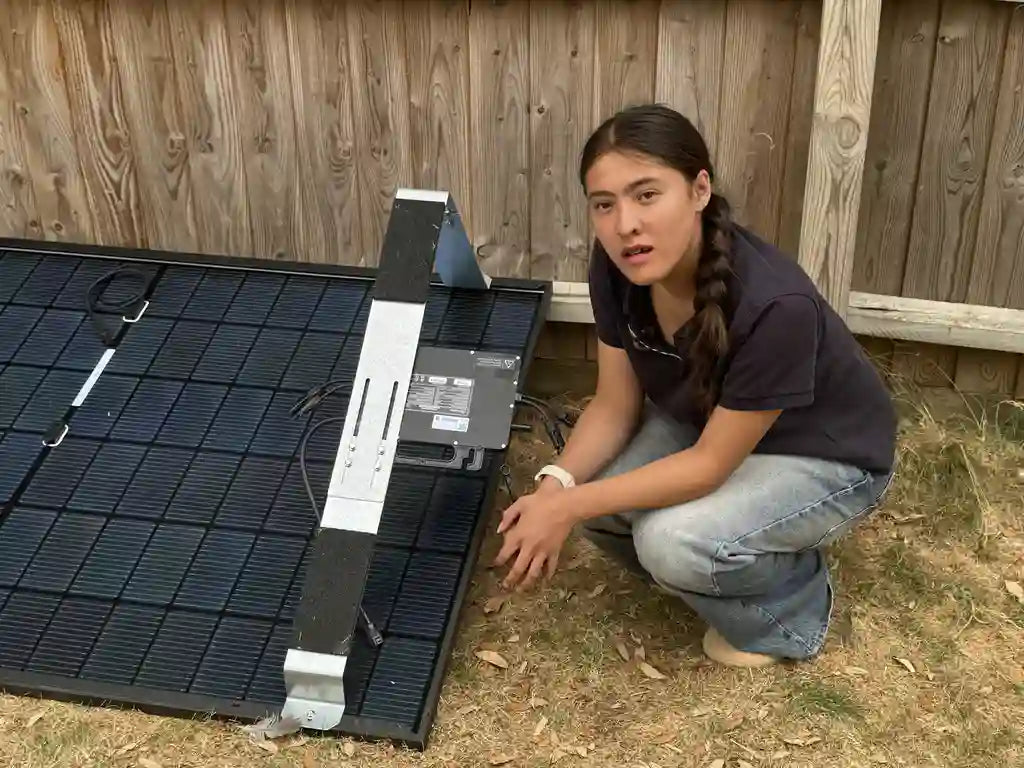

The kit includes two Worldwide Solar Model 2 mounting systems, one for each 465W solar panel.

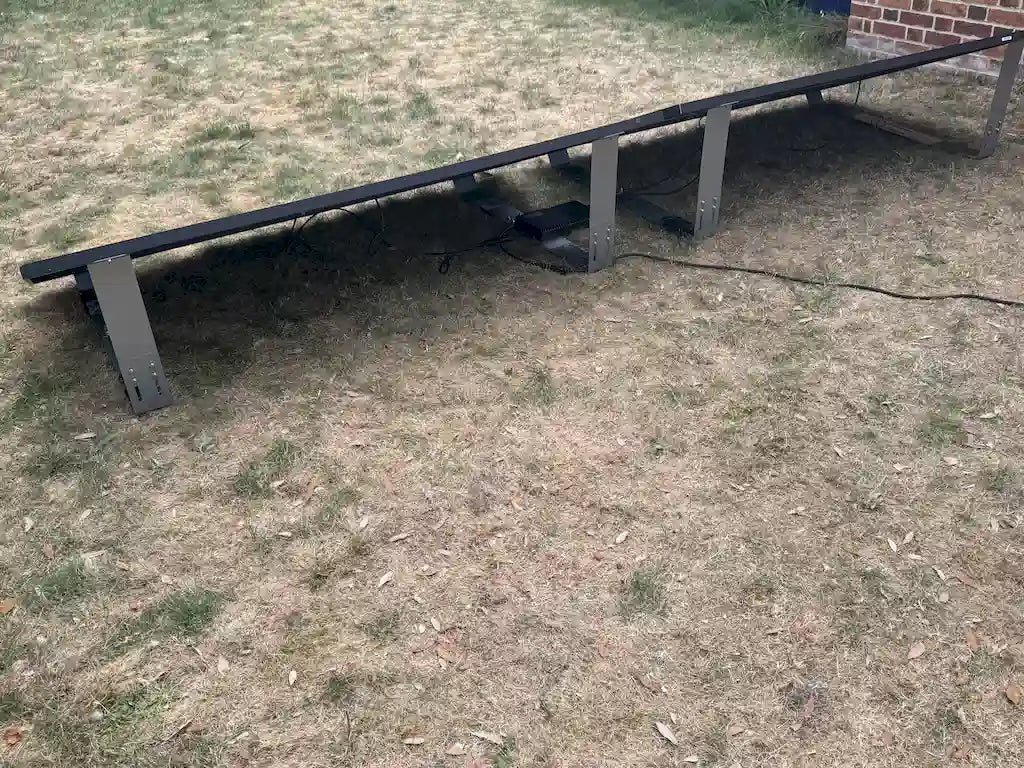

The mounting systems are manufactured from corrosion-resistant ZAM-coated steel and provide a fixed 20° tilt. Their ballasted design allows installation on suitable surfaces without permanently penetrating the supporting surface.
Each solar panel measures 1762 × 1134 × 30 mm and weighs approximately 21.4 kg.
The mounting systems are designed for panels of this size. Correct assembly, approved clamping positions and appropriate concrete ballast are essential for safe installation.
Mounting System Specifications
| MOUNTING SYSTEM SPECIFICATIONS | |
| Model | Worldwide Solar Model 2 |
| Material | ZAM-coated steel (C3 corrosion classification) |
| Tilt Angle | 20° fixed |
| Mounts Included | 2 sets, one per panel |
| Weight per Set | Approximately 6.2 kg, excluding ballast |
| Package Dimensions per Set | 650 × 190 × 110 mm |
| Mounting Method | Ballasted installation on suitable surfaces |
Installation and Positioning

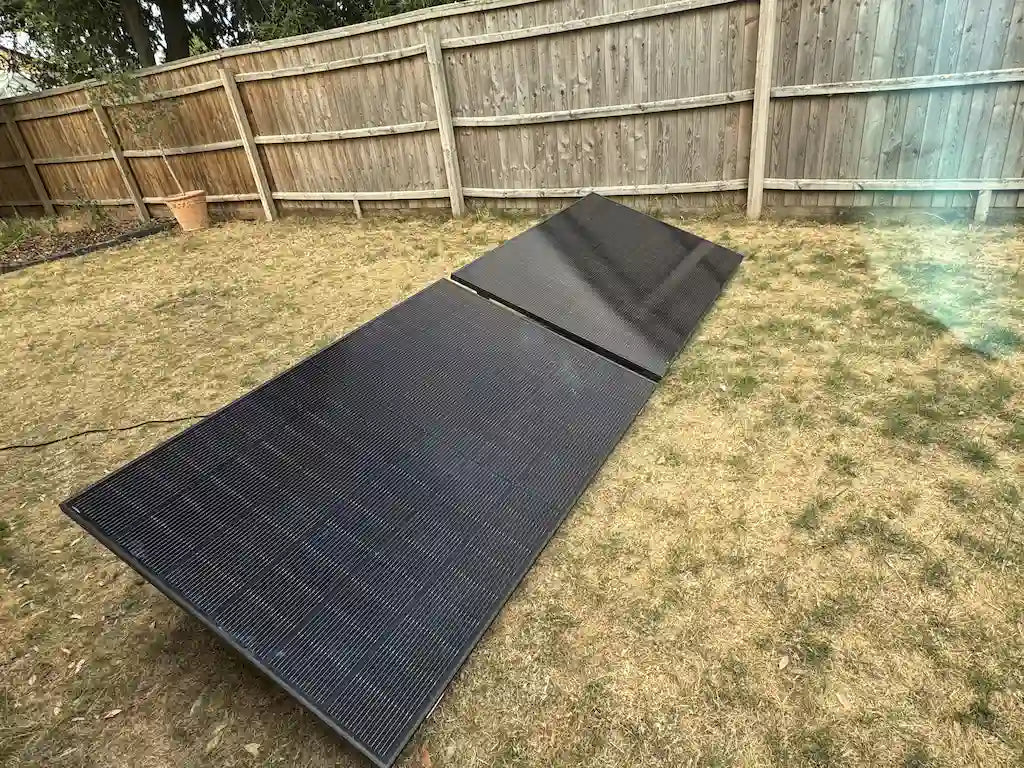

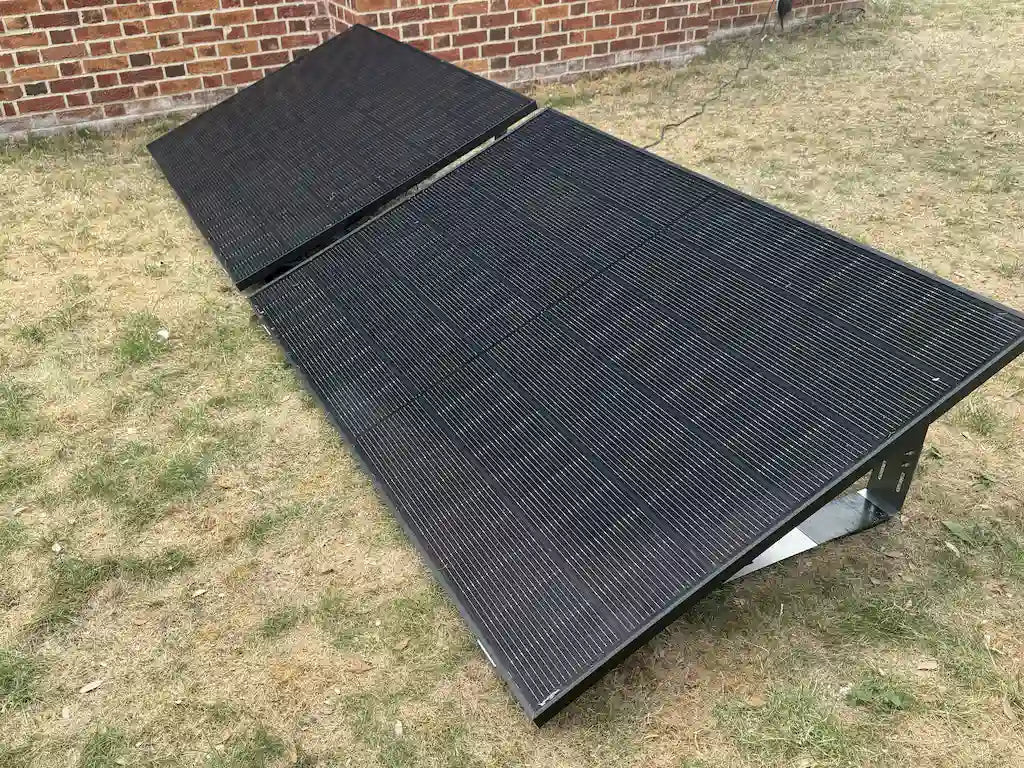

Choose a suitable outdoor location with good sunlight and minimal shading. The fixed 20° tilt provides a practical arrangement for gardens, patios and other suitable outdoor locations.
Before installation, ensure that the supporting surface can safely carry the combined weight of the panels, mounting systems and required concrete ballast.
Follow the mounting manufacturer's instructions and verify the required ballast and anchoring arrangements for the actual site conditions.
Check applicable electrical safety requirements and any relevant distribution network operator notification or registration obligations before commissioning.
Technical Summary
| TECHNICAL SUMMARY | |
| Total Solar Panel Capacity | 930W DC (2 × 465W) |
| Maximum AC Output | 800W |
| Solar Panels | 2 × JA Solar JAM54D40-465/LB bifacial |
| Microinverter | Hoymiles HMS-800-2WB HiFlow Pro |
| AC Cable | 5m UK AC connection cable |
| Mounting Systems | 2 × Model 2, 20° ZAM steel ballast mounts |
| ENA Reference | WORLD/21651/V1/A1 |
| Concrete Ballast | Not included – see ballast requirements below |
BALLAST REQUIREMENTS & INSTALLATIONEach 465W solar panel measures 1762 × 1134 × 30 mm and is supported by one Model 2 mounting system. Each mounting system requires suitable concrete ballast to resist wind uplift, sliding and overturning. Concrete ballast is not included and must be purchased separately. Important: The required ballast weight must be determined according to the mounting-system installation instructions and the actual site conditions. Actual ballast requirements depend on:
For flat-roof installations, obtain a site-specific structural assessment where necessary. Additional ballast or anchoring may be required. Use solid, normal-weight concrete only. Lightweight, hollow and aerated blocks are unsuitable. Secure ballast in the designated positions and follow the mounting instructions. Ballast Installation Guidance
|
IMPORTANT INSTALLATION INFORMATIONConcrete ballast stones are not included. Ballast requirements depend on the installation environment and must be confirmed for the actual site. The supplied solar panels measure 1762 × 1134 × 30 mm and weigh approximately 21.4 kg each. Before installation, confirm that the supporting surface can safely carry the complete installation and that the mounting systems are correctly assembled. The solar panel and microinverter electrical compatibility, including current and voltage limits, must also be verified. |
Solar panel specifications are based on the JA Solar JAM54D40-465/LB product information supplied for this listing. Mounting specifications are based on Worldwide Solar Model 2 product information. This Plug & Play solar system is registered under ENA reference WORLD/21651/V1/A1. Electrical compatibility, mounting suitability and ballast requirements must be verified for the installation location.
```
