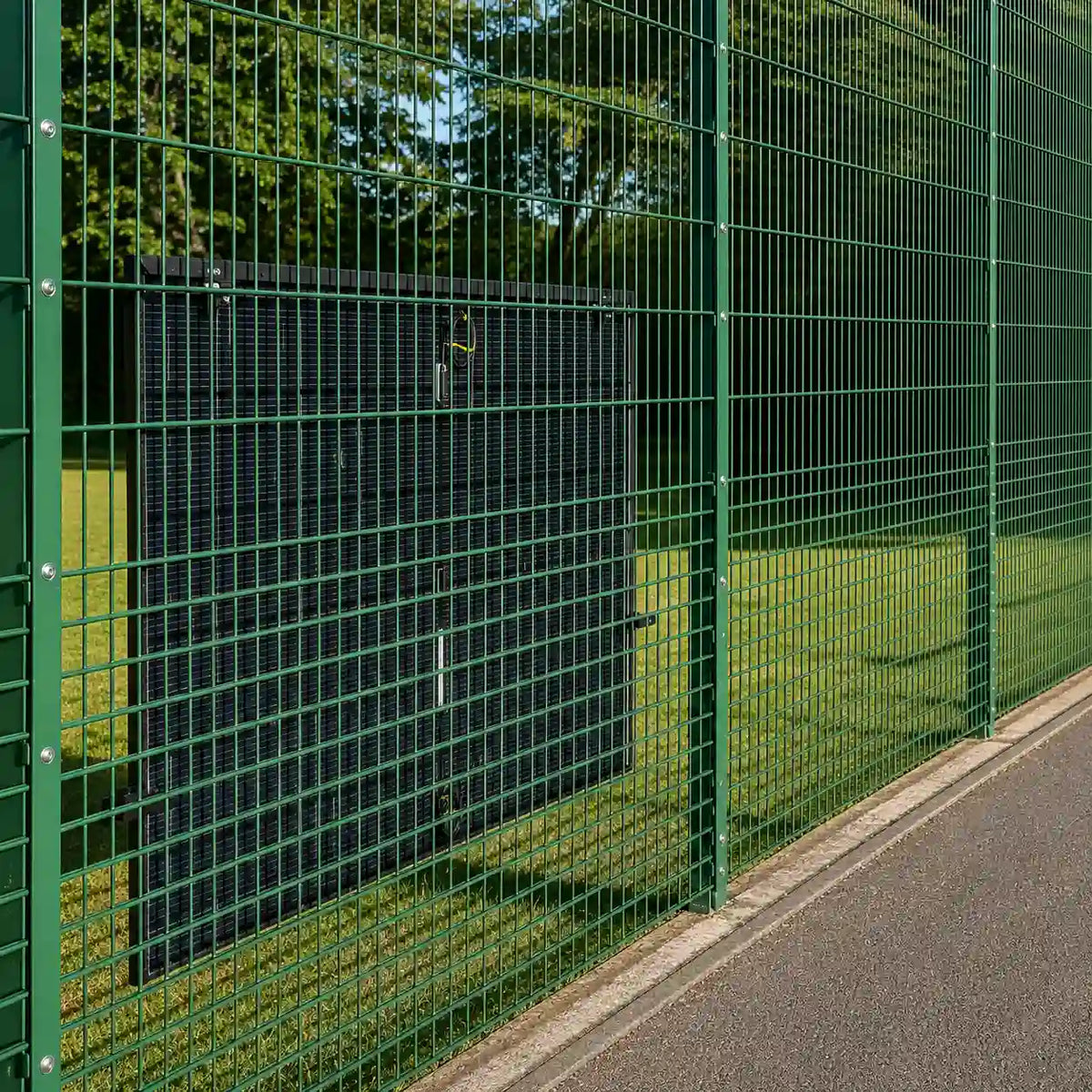

The Worldwide Solar Model 3 – Mesh Fence Solar Panel Mounting System provides a practical and space-efficient solution for mounting framed solar panels directly onto suitable mesh fencing. Designed for straightforward installation, the system allows photovoltaic modules to be securely attached to an existing fence without requiring a separate ground-mounted support structure.

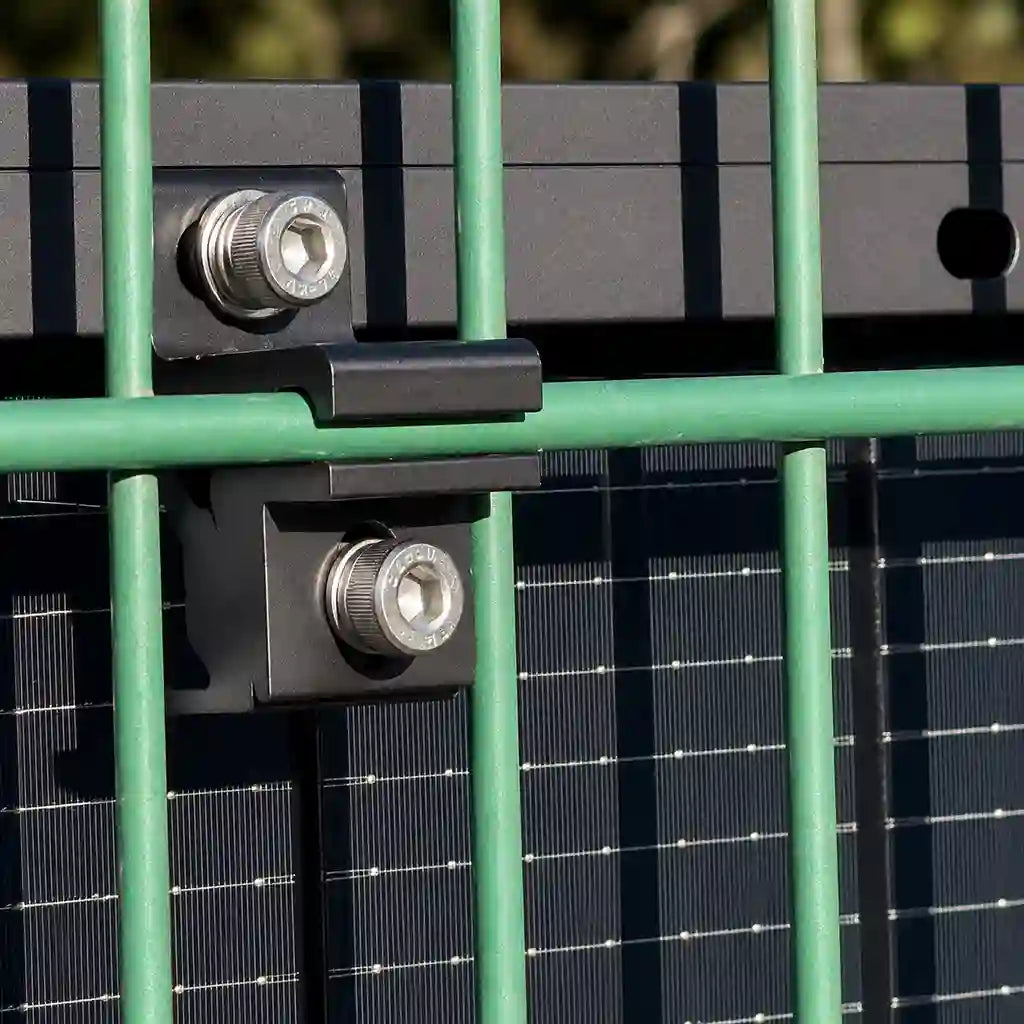

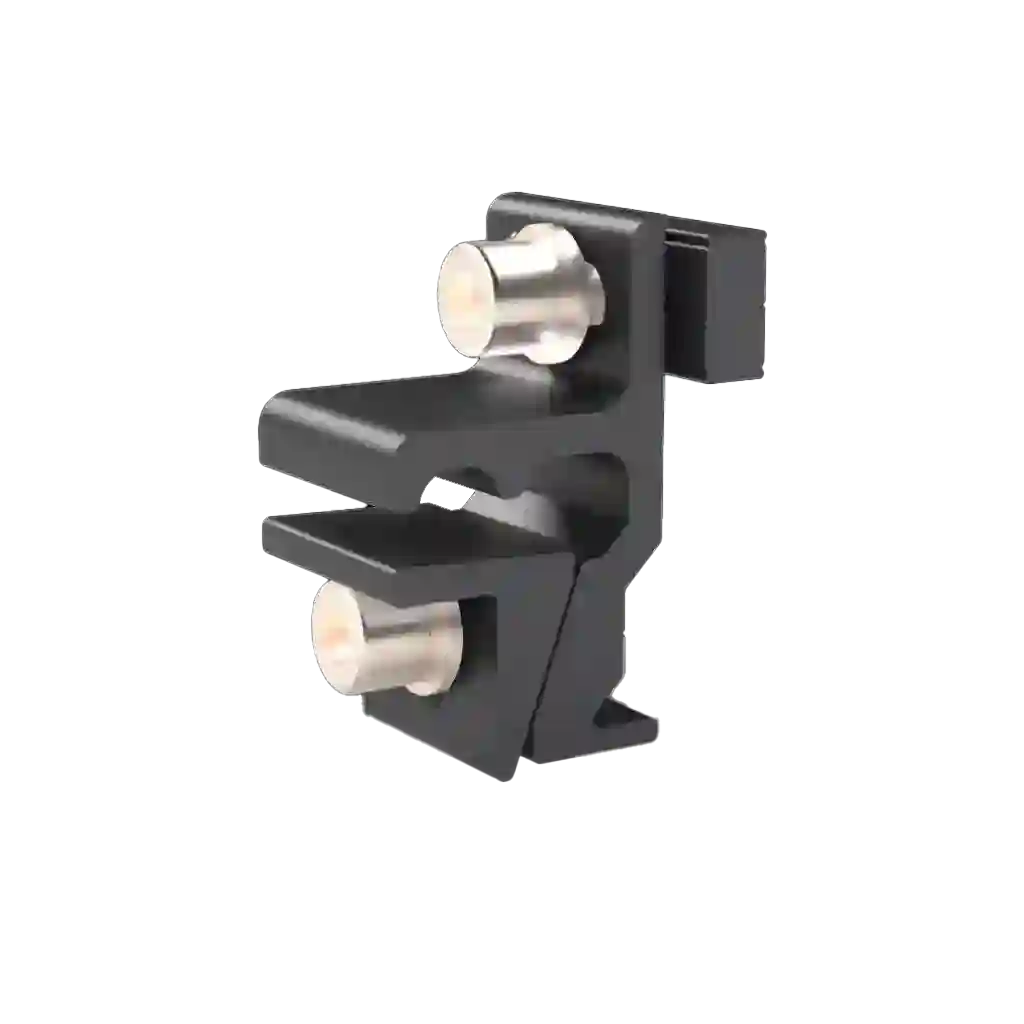

The mounting system uses adjustable upper clamps that attach to suitable mounting holes on the rear of the solar panel frame. The left and right clamps can be adjusted according to the spacing of the fence mesh before the bolt assemblies are tightened securely.

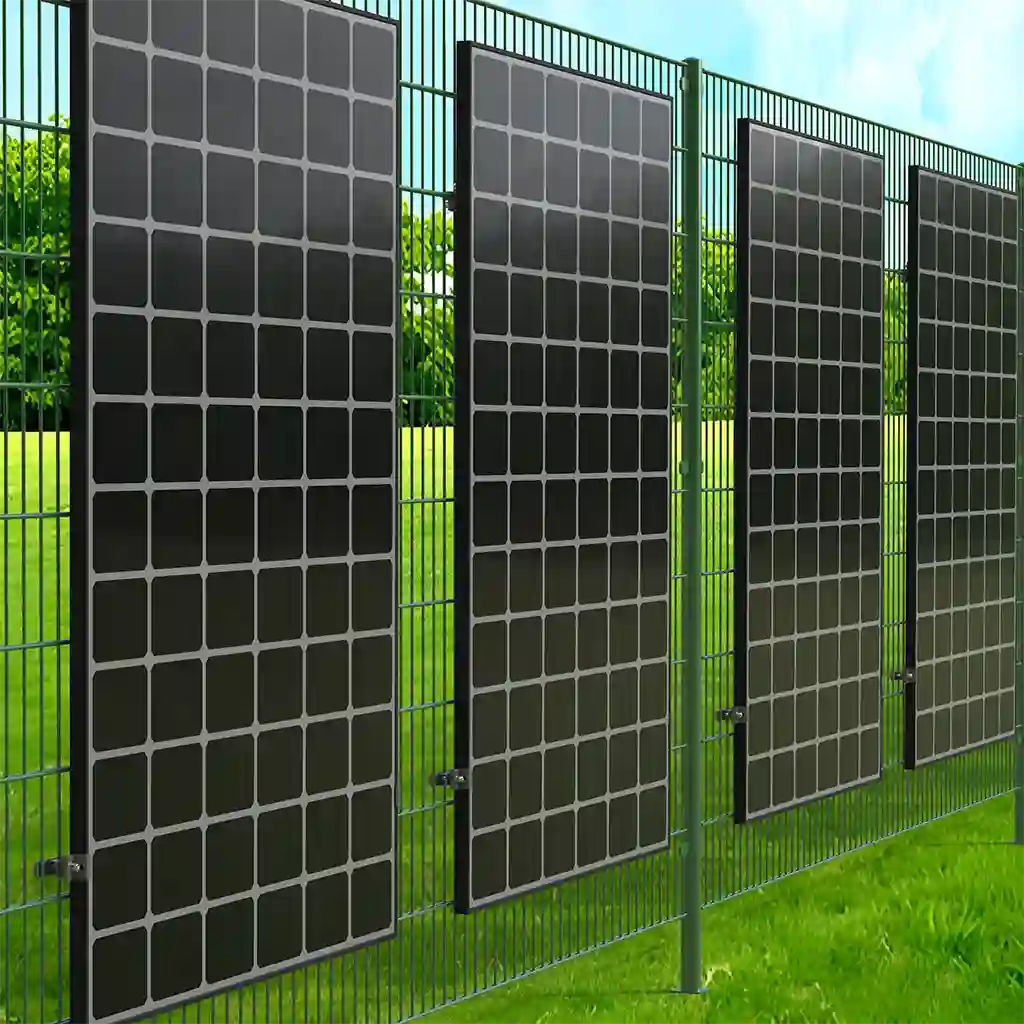

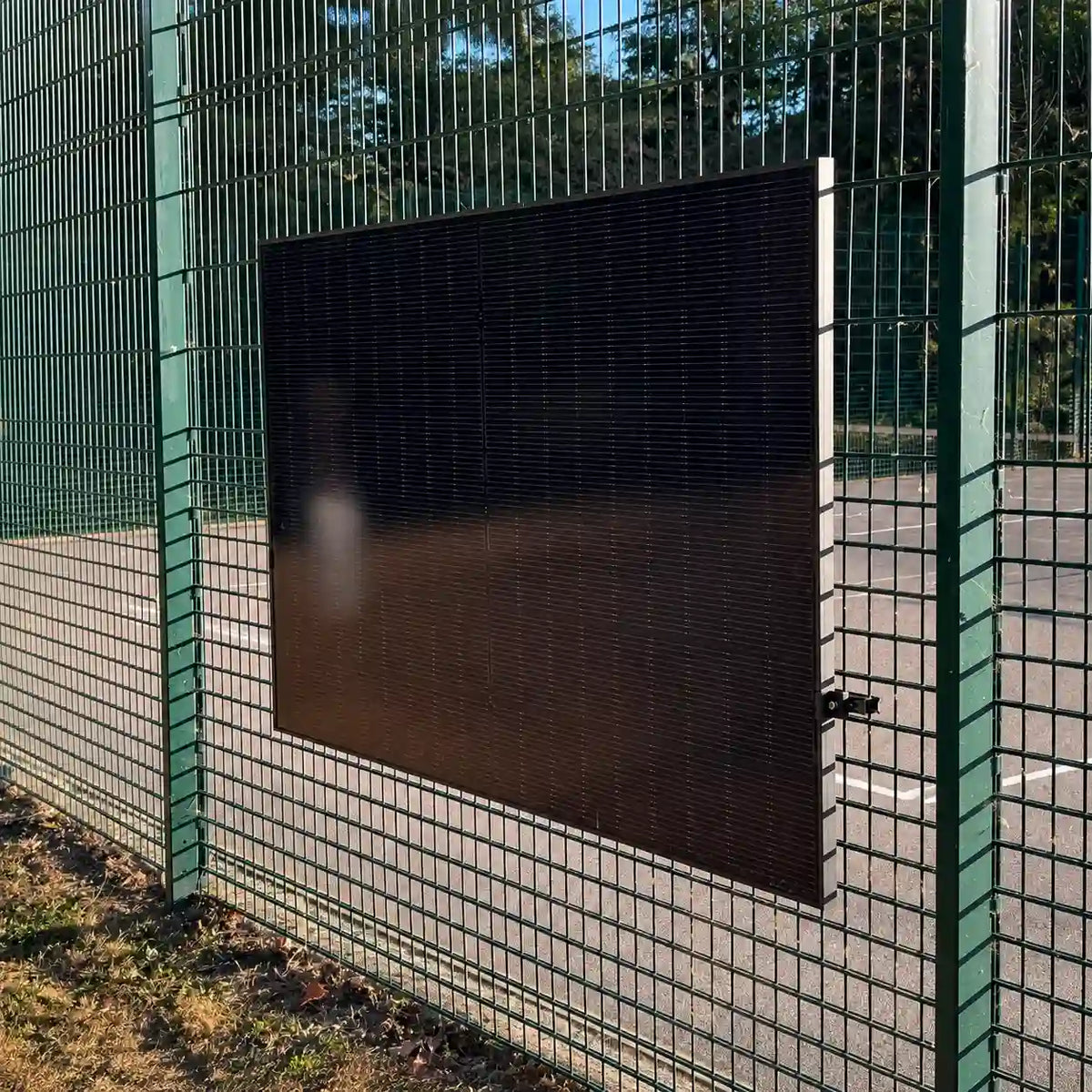

The system supports both vertical (portrait) and horizontal (landscape) solar panel installation, providing flexibility according to the available fence area and the orientation of the solar module.

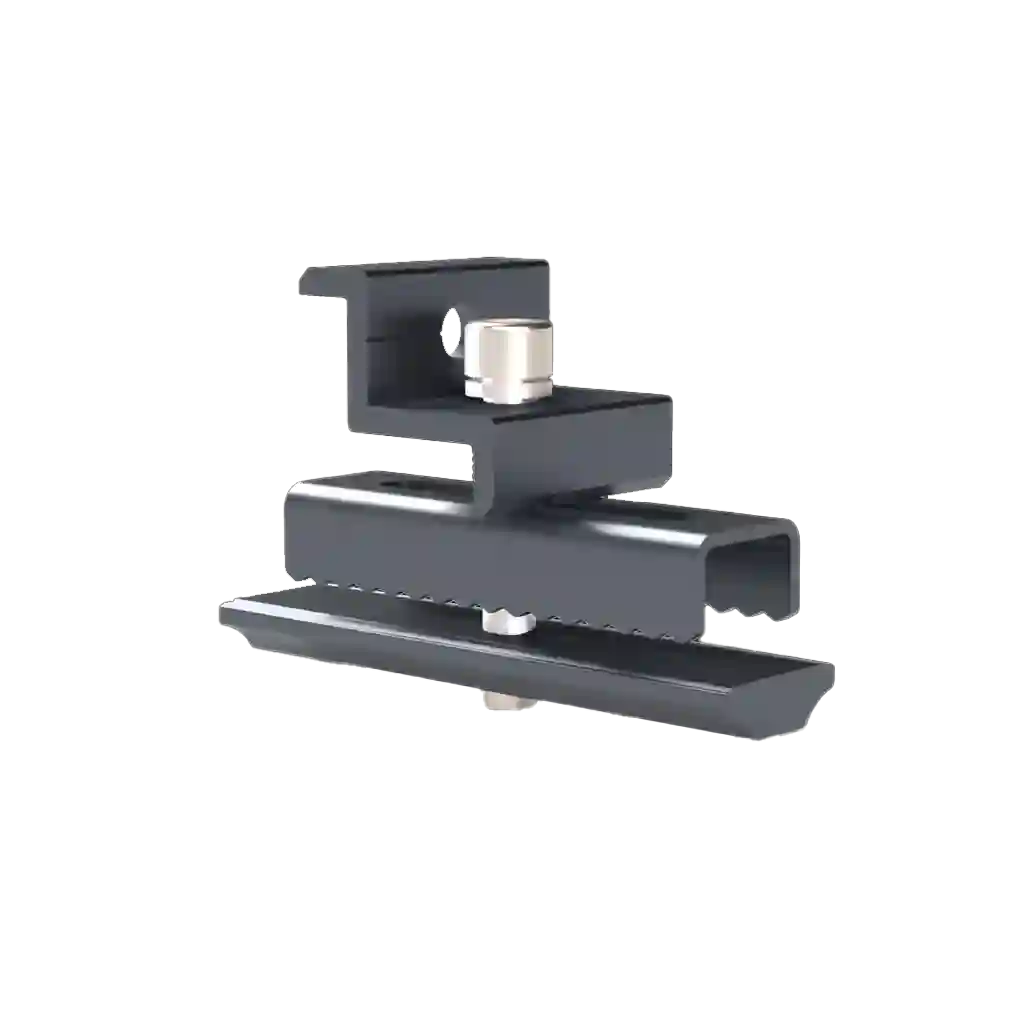

The lower clamp arrangement is designed for framed solar panels with a frame thickness of 30–35 mm. According to the manufacturer’s installation manual, the mounting system is suitable for 656/868 fence configurations. :contentReference[oaicite:0]{index=0}

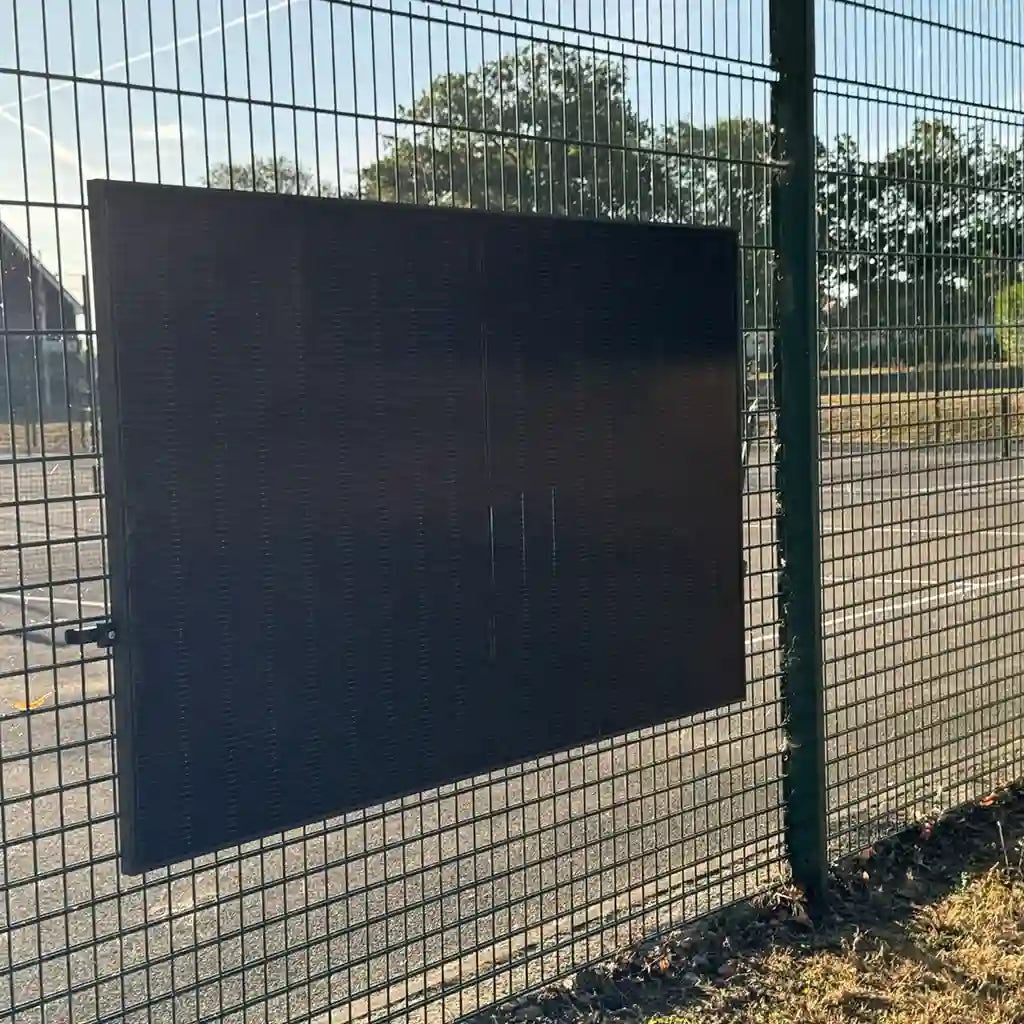

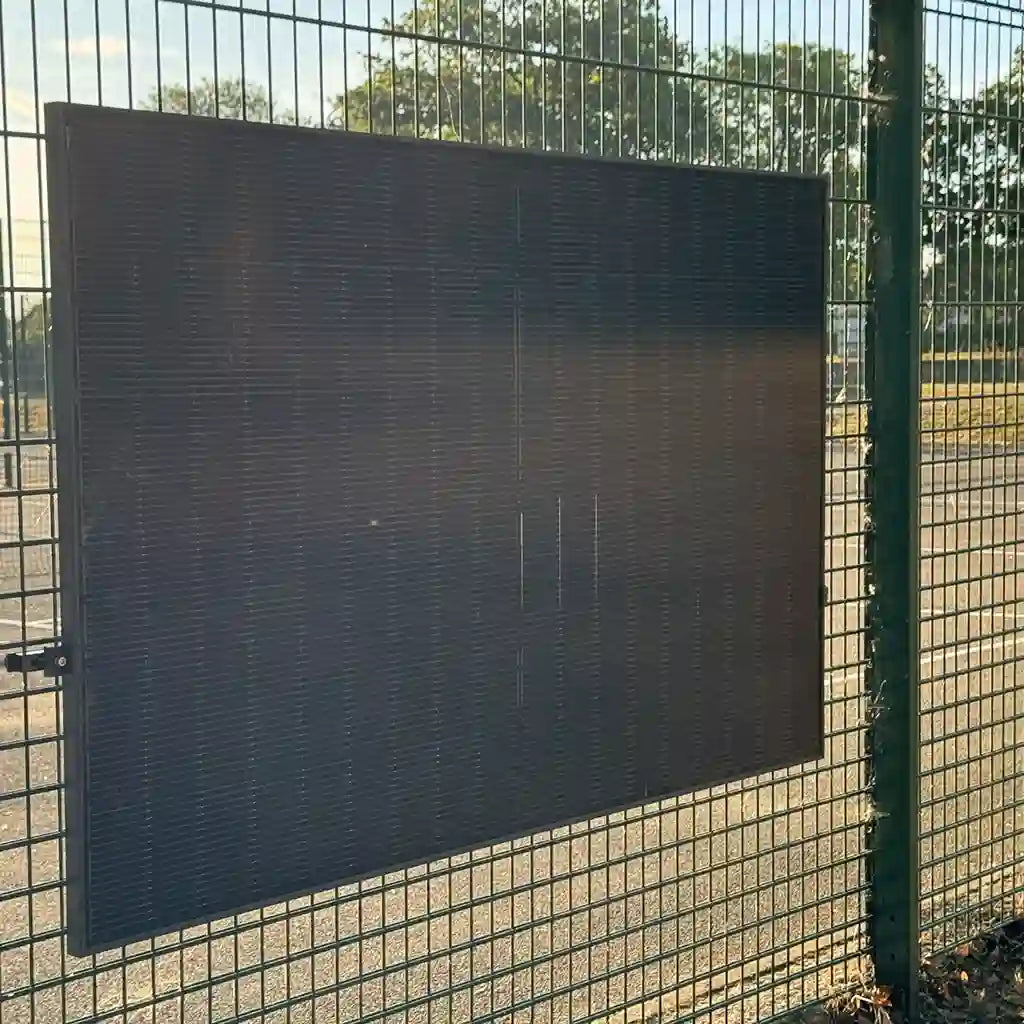

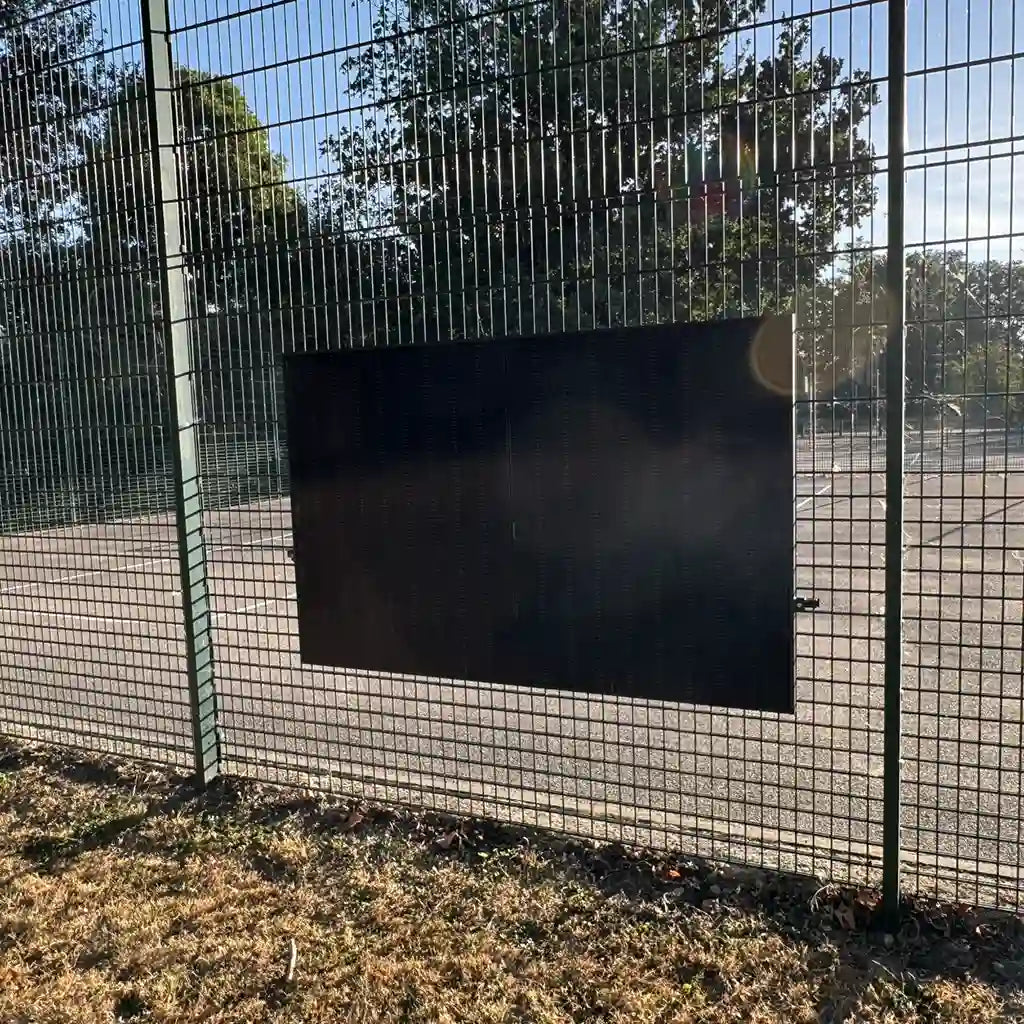

Once installed, the upper and lower mounting components work together to secure the solar panel firmly against the fence. This makes Worldwide Solar Model 3 particularly suitable where an existing compatible mesh fence can provide the supporting structure for a space-saving photovoltaic installation.
Key Features
- Worldwide Solar Model 3 mesh fence solar panel mounting system
- Designed for mounting solar panels directly onto suitable mesh fencing
- Supports one framed solar panel per mounting set
- Suitable for vertical (portrait) installation
- Suitable for horizontal (landscape) installation
- Vertical mounting position of approximately 90°
- Compatible with solar panel frame thicknesses of 30–35 mm
- Adjustable upper clamps allow positioning according to fence mesh spacing
- Upper clamps attach to suitable mounting holes in the rear solar panel frame

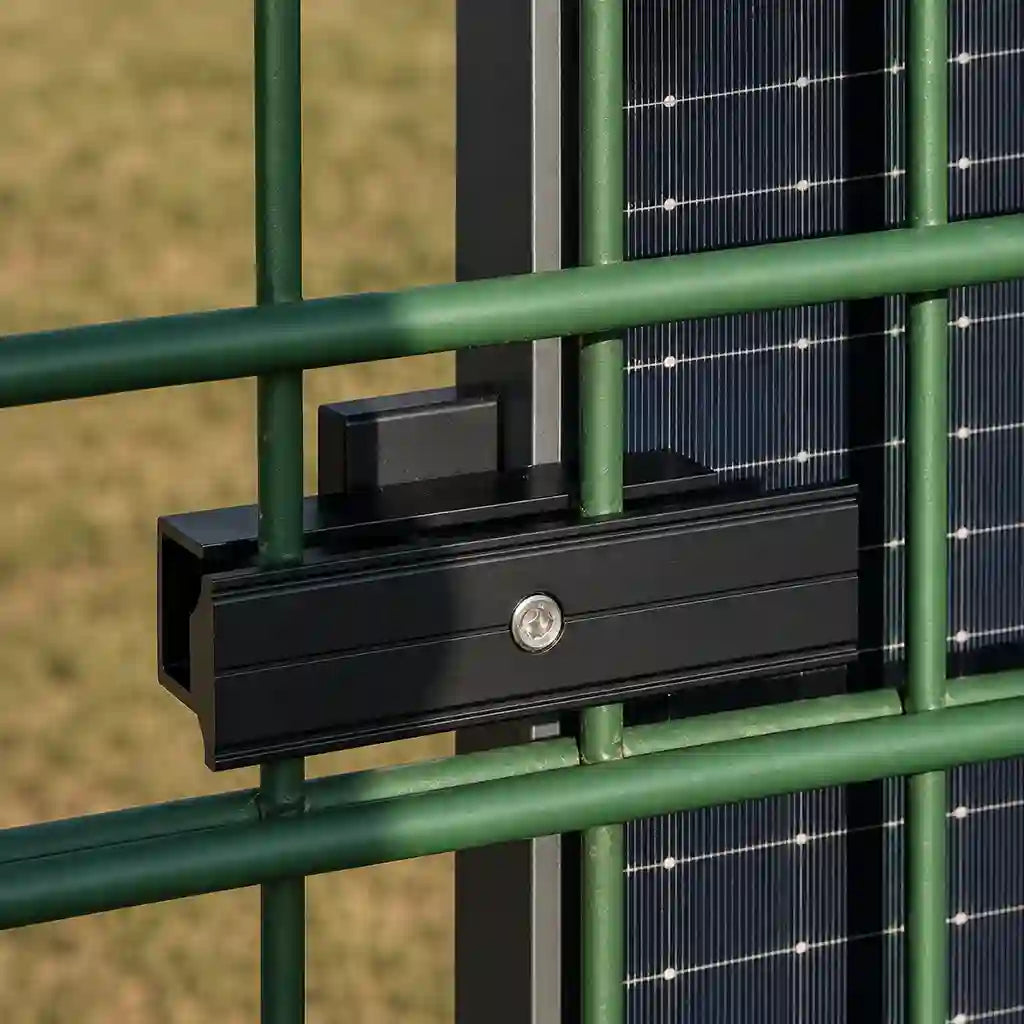

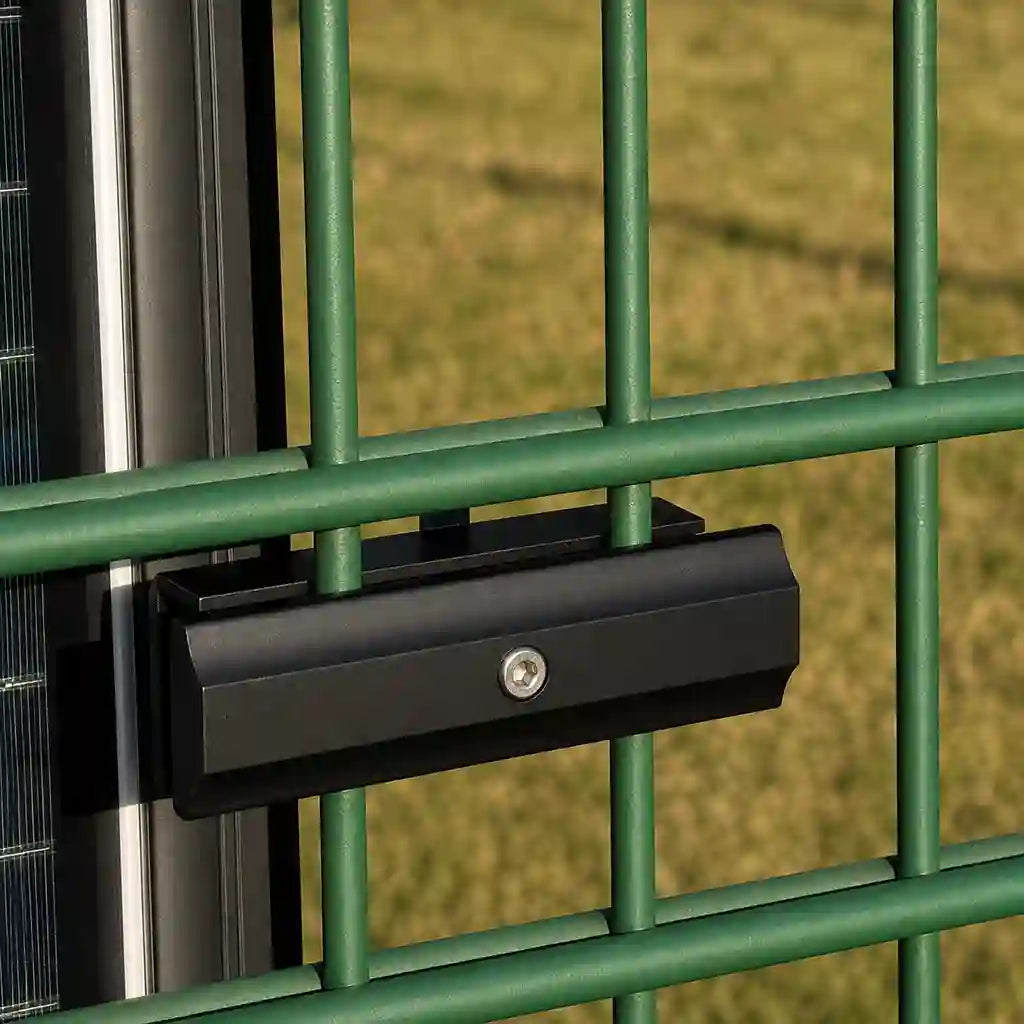

- Lower clamps secure the bottom of the solar panel against the fence
- Suitable for 656/868 fence configurations as stated by the manufacturer
- No separate ground-mounted solar frame required where a suitable mesh fence is available
- Space-efficient mounting solution for suitable residential, commercial and off-grid solar projects
Specifications
| GENERAL DATA | |
| Brand | Worldwide Solar |
| Model | Model 3 |
| Product Type | Mesh Fence Solar Panel Mounting System |
| Mounting Component Type | Solar Panel Mesh Fence Clamp System |
| Installation Type | Mesh Fence-Mounted Solar Installation |
| Panel Orientation | Vertical (Portrait) or Horizontal (Landscape) |
| Tilt Angle | Vertical (90°) |
| Panels Supported | 1 framed solar panel per mounting set |
| PANEL COMPATIBILITY | |
| Compatible Panel Thickness | 30–35 mm |
| Panel Orientation | Portrait or Landscape |
| Panel Attachment | Upper clamps attach through suitable mounting holes in the rear panel frame |
| MESH FENCE COMPATIBILITY | |
| Compatible Fence Type | Suitable mesh fencing |
| Fence Configuration | 656 / 868, as specified by the manufacturer |
| Upper Clamp Adjustment | Adjustable according to fence mesh spacing |
| Lower Clamp Arrangement | One lower clamp positioned on each side of the panel |
Applications
| SUITABLE INSTALLATIONS | |
| Mesh Fence Solar Installations | ✔ |
| Vertical / Portrait Solar Panels | ✔ |
| Horizontal / Landscape Solar Panels | ✔ |
| Residential Solar Installations | ✔ |
| Commercial Solar Installations | ✔ |
| Off-Grid Solar Installations | ✔ |
| Ground Ballast Installation | ✘ |
| Flat Roof Installation | ✘ |
How the Mesh Fence Mounting System WorksThe upper clamps are first installed into suitable mounting holes on the rear of the solar panel frame. Their position can be adjusted according to the spacing of the fence mesh before the bolt assemblies are tightened. The solar panel is then positioned against the mesh fence. The wedge fittings are reinstalled and tightened to secure the upper section of the panel to the fence. Lower clamps are installed beneath the solar panel, with one clamp positioned on each side. The support piece, locking block and front pressure plate work together to hold the panel firmly against the fence. |
Important Installation InformationBefore installation, the purchaser or installer must confirm that installation of the system is permitted under applicable local laws, regulations and property requirements. Installation should be carried out by a suitably qualified installer or professional where required by law. The mesh fence and supporting structure must be capable of safely supporting the solar panel and mounting system for the intended service life. The product should not be installed in environments containing corrosive air or water, including areas exposed to acids or alkalis. The installed system should be inspected and maintained periodically. The manufacturer's instructions specify inspection intervals of no more than one year. |
Product specifications and installation information are based on documentation supplied by the manufacturer. Suitability depends on the solar panel, mesh fence construction, installation location and applicable local requirements. The installer must confirm that the mesh fence and supporting structure are suitable for the intended photovoltaic installation before installation begins.
