| ✓ Compliant – ENA Approved ConfigurationThis Plug & Play garden solar system is listed as a compliant configuration under ENA Reference: WORLD/21447/V1/A5. |

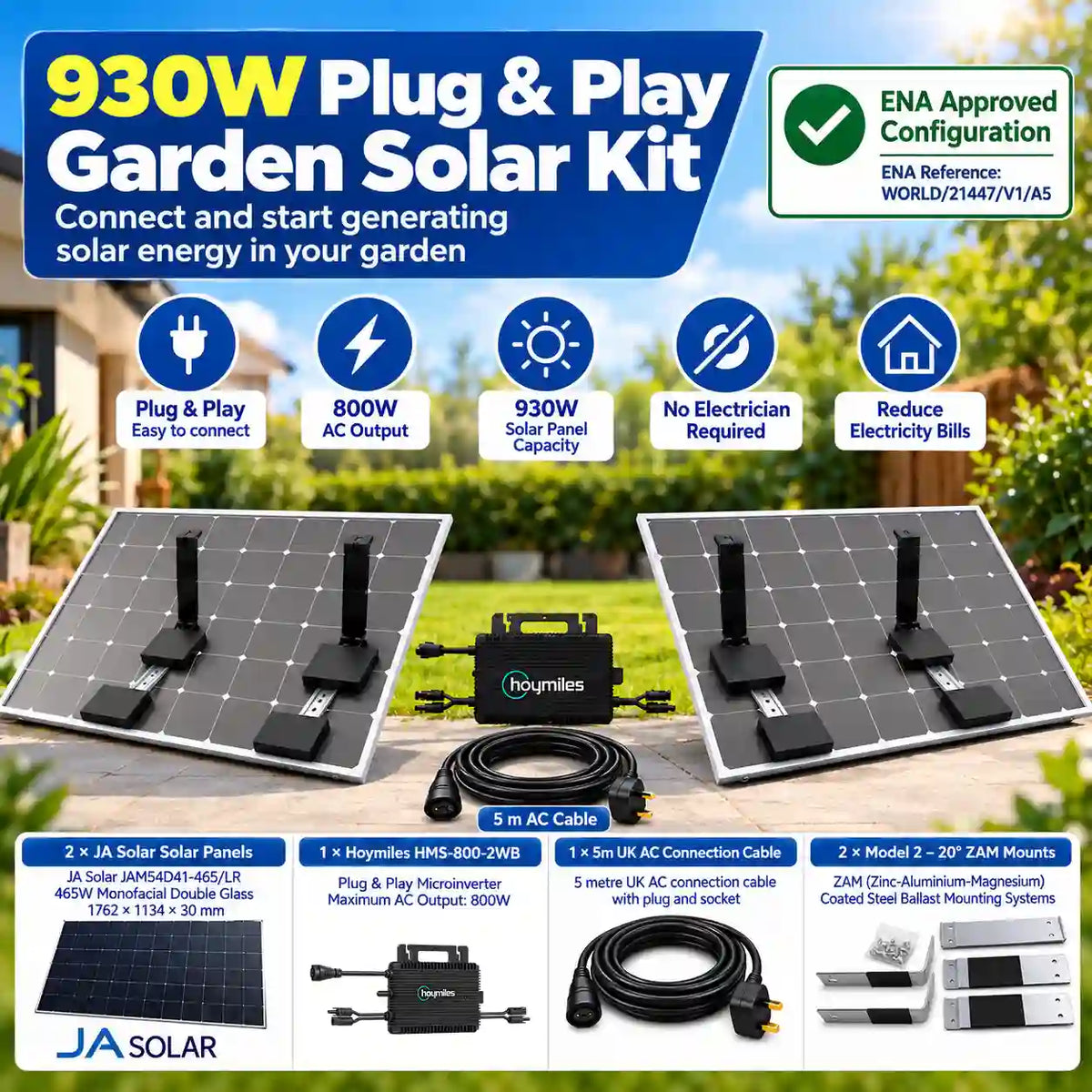

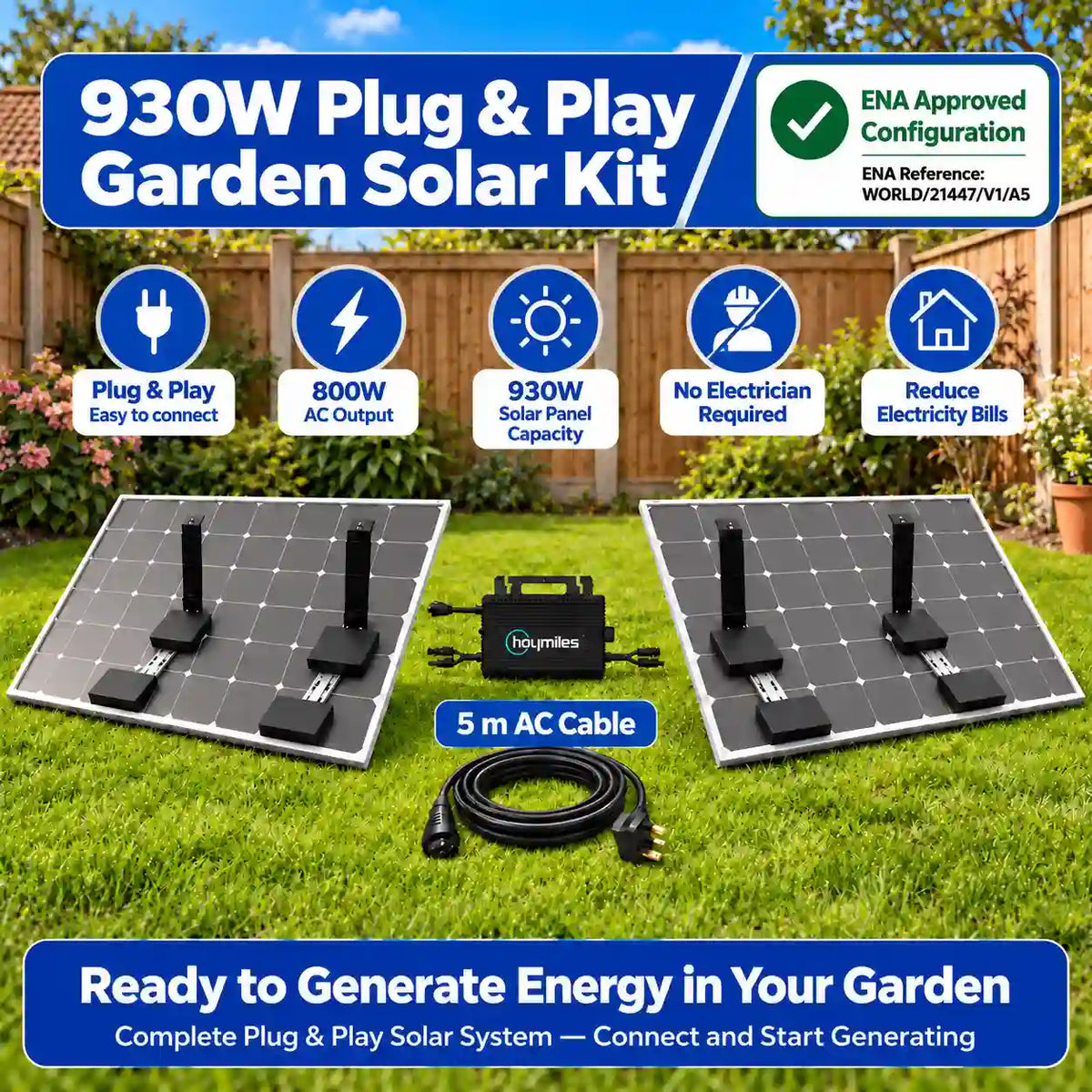

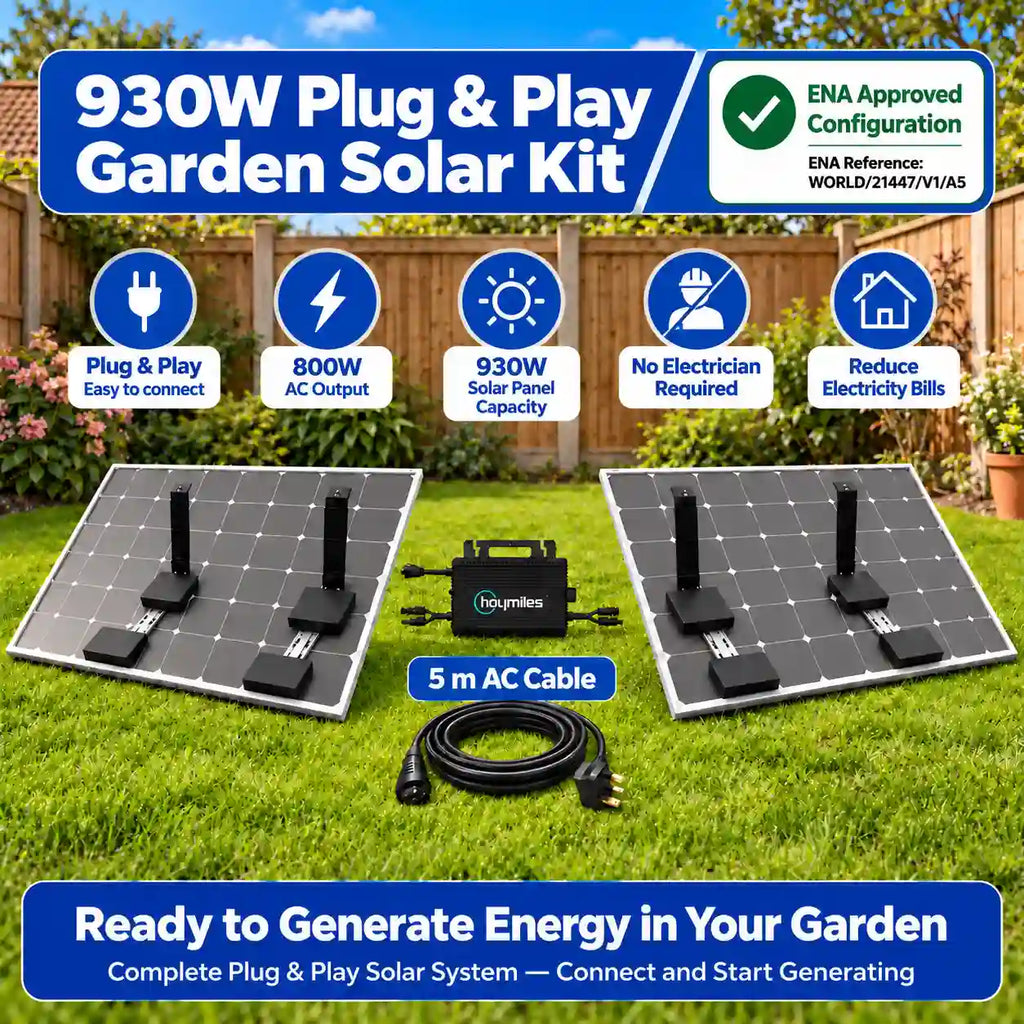

Plug & Play and ready to generate solar energy in your garden. This complete 930W garden solar system combines two high-performance JA Solar 465W monofacial solar panels, a Hoymiles HMS-800-2WB microinverter, a 5-metre UK AC connection cable and two durable 20° ZAM steel ballast mounting systems.
Designed for convenient installation in gardens and other suitable outdoor spaces, the system allows you to generate renewable electricity directly from sunlight and reduce the amount of electricity purchased from the grid.
The microinverter converts the electricity generated by the solar panels into usable AC electricity, with a maximum AC output of 800W.
What's Included in This Solar Kit?
| KIT CONTENTS | |
| Solar Panels | 2 × JA Solar JAM54D41-465/LR 465W Monofacial Solar Panels Total DC Capacity: 930W |
| Microinverter | 1 × Hoymiles HMS-800-2WB Plug & Play Microinverter Maximum AC Output: 800W |
| AC Connection Cable | 1 × 5m UK AC Connection Cable |
| Mounting Systems | 2 × Model 2 – 20° ZAM Steel Ballast Solar Mounting Systems One mounting system for each solar panel. |
| Concrete Ballast | Not included – must be purchased separately. |
| ENA Reference | WORLD/21447/V1/A5 |
Key Features and Benefits
- 930W Solar Panel Capacity: Two 465W JA Solar monofacial panels provide a combined rated DC capacity of 930W.
- 800W AC Output: The Hoymiles HMS-800-2WB microinverter delivers up to 800W of AC power.
- Plug & Play Design: Designed for straightforward connection using the supplied 5m UK AC cable, subject to applicable electrical safety requirements.
- ENA Approved Configuration: The specified solar panel and microinverter combination is listed under ENA Reference WORLD/21447/V1/A5.
- Individual Panel Optimisation: Two independent MPPT inputs allow the microinverter to optimise the output of each solar panel individually.
- Durable Mounting Systems: Two corrosion-resistant ZAM steel mounting systems provide a fixed 20° installation angle.
- No Roof Installation Required: The ballast mounting systems are designed for suitable ground-level installations without requiring a conventional roof-mounted installation.
- Renewable Energy: Generate electricity from sunlight and reduce dependence on grid electricity.
JA Solar 465W Monofacial Solar Panels
The kit includes two JA Solar JAM54D41-465/LR 465W monofacial solar panels. JA Solar is an established manufacturer of photovoltaic modules, supplying solar technology for residential, commercial and industrial applications.
Each panel has a rated output of 465W under standard test conditions, providing a combined installed solar panel capacity of 930W. Actual electricity generation depends on sunlight, temperature, orientation, shading and other environmental conditions.
Hoymiles HMS-800-2WB Plug & Play Microinverter
The Hoymiles HMS-800-2WB microinverter converts the DC electricity generated by the solar panels into AC electricity suitable for household use.
- Maximum AC output power: 800W
- Two independent MPPT inputs
- Designed for connection to two solar panels
- Compact and weather-resistant construction
- Supplied with a 5m UK AC connection cable
- Suitable for the specified ENA-listed solar configuration
The microinverter can help maximise energy production by independently tracking the maximum power point of each connected solar panel.
Model 2 – 20° ZAM Steel Ballast Solar Mounting Systems
For further specifications and mounting details, visit the Worldwide Solar Model 2 – 20° ZAM Steel Ballast Mounting System product page.
This kit includes two Model 2 ZAM steel ballast mounting systems, with one mounting system supplied for each solar panel.
For full specifications and mounting details, see the Worldwide Solar Model 2 – 20° ZAM Steel Ballast Mounting System.
The mounting systems are designed to support solar panels at a fixed 20° inclination, making them suitable for installation on appropriate flat ground surfaces and other suitable locations.
Manufactured from corrosion-resistant zinc-aluminium-magnesium (ZAM) coated steel, the mounting systems provide a durable solution for outdoor solar installations.
Mounting System Specifications
| MOUNTING SYSTEM SPECIFICATIONS | |
| Model | Model 2 |
| Material | ZAM (Zinc-Aluminium-Magnesium) Coated Steel |
| Installation Angle | 20° |
| Panel Capacity | 1 Solar Panel per Mounting System |
| Mounting Systems Included | 2 Sets |
| Weight per Set | Approximately 6.2kg (excluding ballast) |
| Package Dimensions per Set | 650 × 190 × 110mm |
| Corrosion Resistance | C3 |
| Mounting Method | Ballasted Installation |
Installation and Positioning
For optimal performance, position the solar panels in a location that receives good sunlight throughout the day. In the UK, a south-facing orientation will generally provide the highest annual electricity generation.
The 20° mounting angle offers a practical balance between solar energy generation and installation height.
Before installation, ensure that the supporting surface is stable, level and capable of safely supporting the complete system, including the required ballast.
All electrical connections and mounting arrangements must comply with applicable safety requirements and local regulations. Check the suitability of the intended connection method and any relevant network operator notification requirements.
Generate Your Own Renewable Electricity
With 930W of installed solar panel capacity and an 800W microinverter, this system can help offset household electricity consumption during daylight hours.
Electricity generated by the system can contribute towards powering household appliances and other electrical loads, reducing the amount of electricity imported from the grid.
Actual electricity production and financial savings vary depending on weather conditions, shading, geographical location, installation orientation and household electricity consumption.
Technical Summary
| TECHNICAL SUMMARY | |
| Total Solar Panel Capacity | 930W DC |
| Maximum AC Output | 800W |
| Solar Panels | 2 × JA Solar JAM54D41-465/LR |
| Microinverter | Hoymiles HMS-800-2WB |
| AC Cable | 5m UK AC Connection Cable |
| Mounting Systems | 2 × Model 2 – 20° ZAM Steel Ballast Mounts |
| Mounting Angle | 20° |
| ENA Reference | WORLD/21447/V1/A5 |
| Concrete Ballast | 8 solid concrete ballast stones, approximately 29.4kg each. Total ballast weight: approximately 235.2kg. Not included – must be purchased separately. |
BALLAST REQUIREMENTS & INSTALLATIONFor a standard solar module measuring 1762 × 1134 × 30 mm, each Worldwide Solar Model 2 mounting system requires four solid concrete ballast stones weighing approximately 29.4kg each. This provides 117.6kg of ballast per mounting system. As this kit includes two mounting systems, the stated arrangement uses eight stones in total, providing 235.2kg of concrete ballast. The two steel mounting systems weigh approximately 12.4kg combined, excluding panels and concrete ballast. Important sizing note: The stated ballast arrangement is based on a reference module measuring 1762 × 1134 × 30 mm. Confirm the dimensions and weight of the supplied JA Solar JAM54D41-465/LR panels and obtain the correct site-specific ballast specification before installation; the stated 235.2kg is not a universal minimum for every location. Use solid, normal-weight concrete only. Lightweight, hollow and aerated concrete blocks are not suitable. Concrete ballast is not supplied with this kit and must be purchased separately. Ballast installation guidance
|
IMPORTANT INSTALLATION INFORMATIONImportant: Concrete ballast stones are not included. Ballast requirements can change with module size and weight, wind exposure, site conditions and installation location. Seek a competent installer or structural assessment where necessary. The stated ballast values are based on a standard solar module measuring 1762 × 1134 × 30 mm. Different solar panel dimensions or weights may alter the required ballast and overall performance of the mounting system. Before installation, confirm that the supporting surface can safely carry the combined weight of the mounting systems, solar panels and ballast stones. For flat-roof installations, a professional structural assessment may be required. |
Worldwide Solar mounting system specifications and performance values are based on Worldwide Solar product information. The stated snow-load and ballast values relate to a reference module measuring 1762 × 1134 × 30 mm. Actual installation requirements vary depending on the panels used, local wind and snow conditions, site exposure, supporting surface and applicable building regulations.
